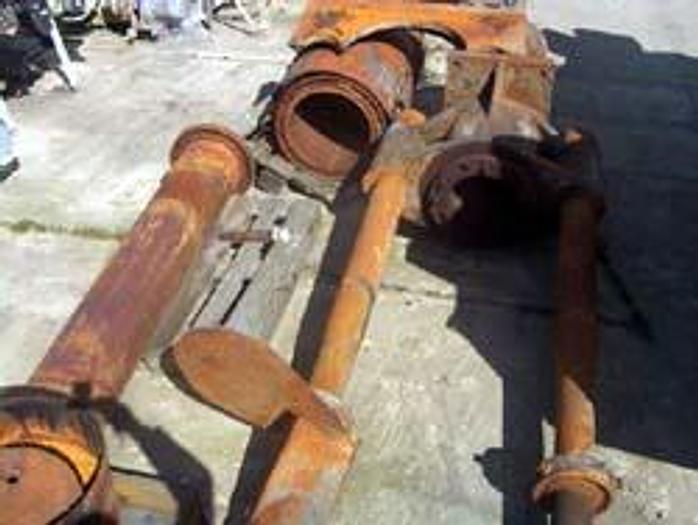

Greaves press

Greaves press

The crackling press is a reliable solution for meat processing plants and producers of animal fats. Thanks to its robust construction and precisely selected technical parameters, the press enables effective separation of fat from raw material, ensuring high quality of the final product. The large hopper capacity and efficient pressing system allow optimization of the production process and time savings.

Overall dimensions of the device

• width: 1200 mm

• height: 4200 mm

Technical data of the press

• outer cylinder diameter: Ø 500 mm

• inner cylinder diameter: Ø 320 mm

• cylinder length: 1700 mm

• piston diameter: Ø 300 mm

• piston length: 1700 mm

• hopper diameter: Ø 440 mm

• hopper height: 1300 mm

• hopper capacity: 198 dm³

Technical data of the water pump

• length: 1700 mm

• depth: 500 mm

• height: 1000 mm

• motor power: 3.5 kW

• rotational speed: 1440 rpm

• drive: belt transmission (V-belts)

Main advantages

• high efficiency of crackling pressing

• robust industrial construction

• large hopper capacity

• reliable drive system

• easy operation and maintenance

Application

The press is used in:

• meat processing plants

• slaughterhouses

• animal fat processing plants

• production of cracklings and lard
