Injector "Fomaco"

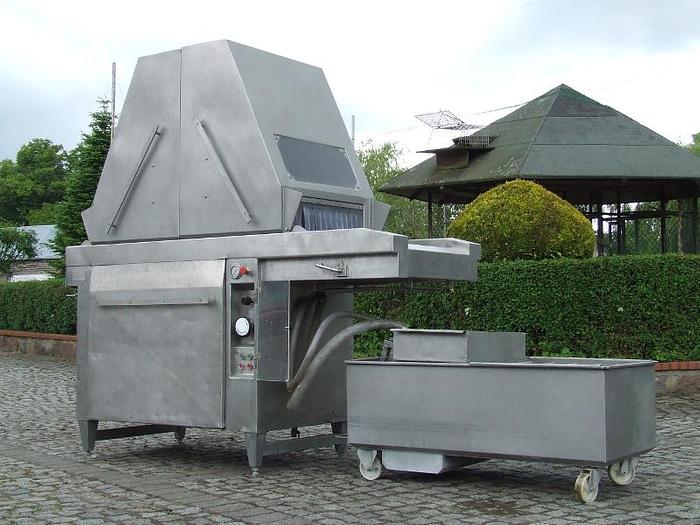

Injector "Fomaco" Fomaco FGM 44/88 injector is an efficient industrial device designed for injecting curing brine deep into meat — both boneless and bone-in.

The machine ensures uniform injection, improving product quality, juiciness, and repeatability of the technological process. Thanks to its robust acid-resistant stainless steel construction, the Fomaco model performs perfectly in meat plants, processing facilities, and large production companies.

Main application:

• uniform intramuscular brine injection,

• injection of red meat, poultry, and bone-in elements,

• increased production efficiency and consistent product quality.

Overall dimensions

• Length: 2,350 mm

• Width: 950 mm

• Height: 2,240 mm

Technical data

• Manufacturer: Fomaco Food Machinery Company A/S (Denmark)

• Model: FGM 44/88

• Year of production: 1988

• Machine number: 4091

• Average working capacity: up to 2,500 kg/h

• Maximum brine injection: 40%

• Number of needles: 88 pcs.

• Brine working pressure: 0.03–0.1 MPa

• Brine filtration system – ensures system cleanliness

• Stainless steel brine tank

• Pump motor power: 1.1 kW

• Drive motor power: 1.5 kW

• Total installed power: 2.6 kW

• Material: acid-resistant stainless steel

• Machine weight: 650 kg

Advantages of the device

• Precise meat injection thanks to 88 working needles

• High efficiency, ideal for meat processing plants

• Solid acid-resistant stainless steel construction, corrosion-resistant

• Brine filtration system ensuring process cleanliness

• Easy operation and maintenance, even under intensive use

• Improved meat quality and juiciness thanks to uniform injection
