Washer with water heating, stainless steel

Washer with water heating, stainless steel

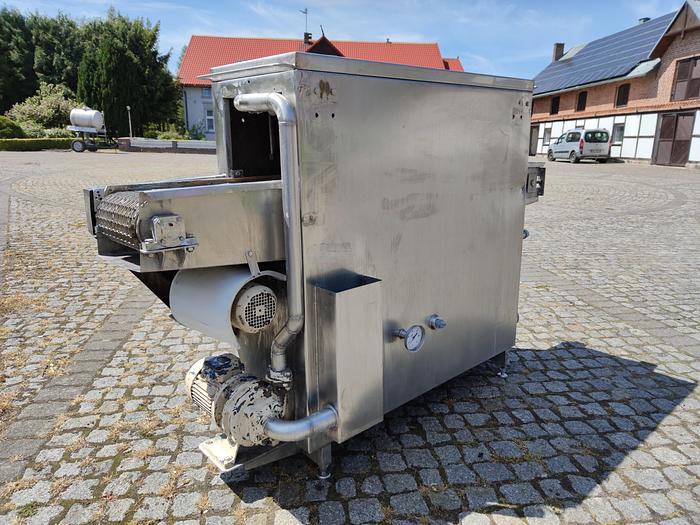

Water-Heated Washer is an industrial device designed for efficient cleaning of products and packaging in food industry processing lines. Thanks to built-in water heating and full stainless steel construction, the device ensures high hygiene, durability, and corrosion resistance.

Overall Dimensions

• Total length: 2,020 mm
• Total width: 700 mm
• Total height: 1,380 mm

Technical Data

a) Conveyor belt

• Length: 1,970 mm
• Width: 295 mm
• Mesh size (L × W): 20 × 15 mm

b) Washing chamber

• Length: 1,310 mm
• Width: 490 mm
• Height: 390 mm
• Spray nozzles: 36 pcs (bottom, sides, top)

c) Inlet/Outlet openings

• Width: 340 mm
• Height: 285 mm

d) Water tank

• Length: 1,300 mm
• Width: 500 mm
• Depth: 430 mm
• Water heating: heating coil in the tank

e) Drives

• Conveyor: gear motor, 0.55 kW – 1,440 rpm
• Washing water circulation pump: motor 1.5 kW – 2,900 rpm

f) Additional features

• Adjustable leg height
• Removable top cover of washing chamber
• Weight: 150 kg
• Fully stainless steel construction

Application

The water-heated washer is used in:

• food industry production lines,
• washing jars, cans, and other packaging,
• processes requiring thorough hot water cleaning,
• facilities where hygiene and corrosion resistance are critical.
