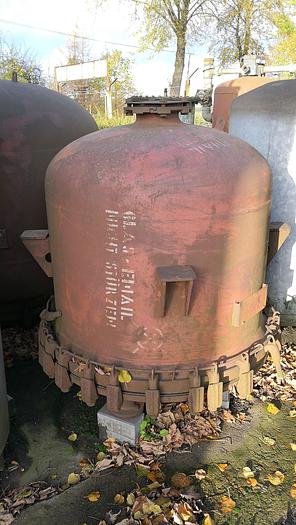

Internally enamelled reactor

Internally enameled reactor Dimensions: - Total width - 1,200 mm; - Outer diameter - 1,000 mm; - Height without legs - 1,500 mm. Technical data: - Working pressure - 0.9 MPa; - Working capacity - 1,000 l; - Process temperature - 0 - 200°C; - Bottom drain - Ø 170 mm; - Top central manhole (bolted) - Ø 1,000 mm; - Internal cladding - Glass - enamel.
