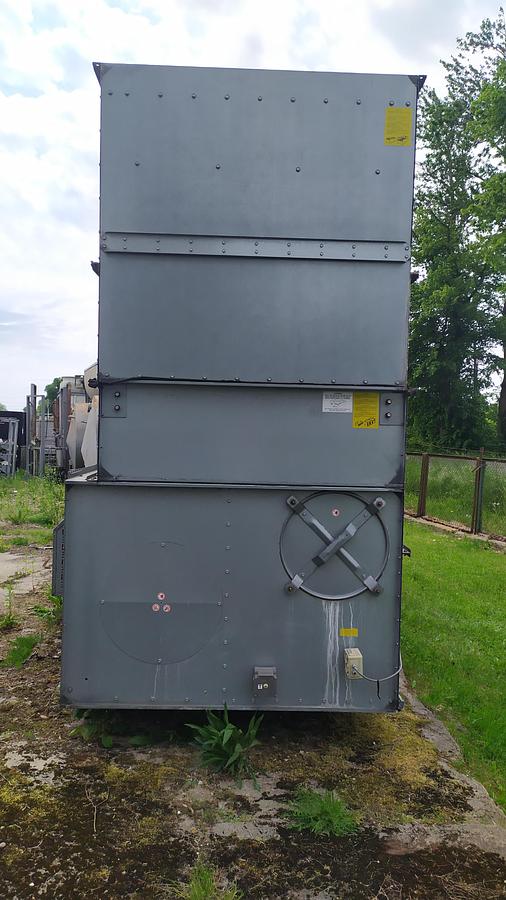

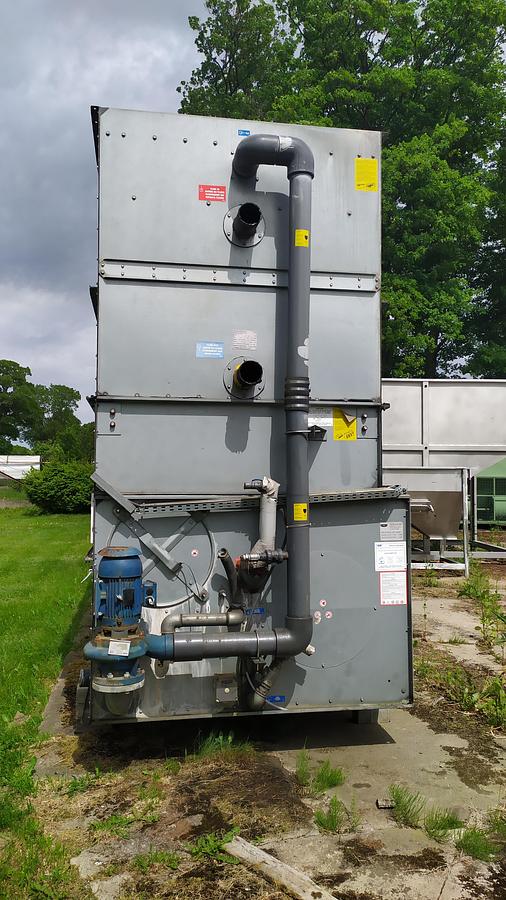

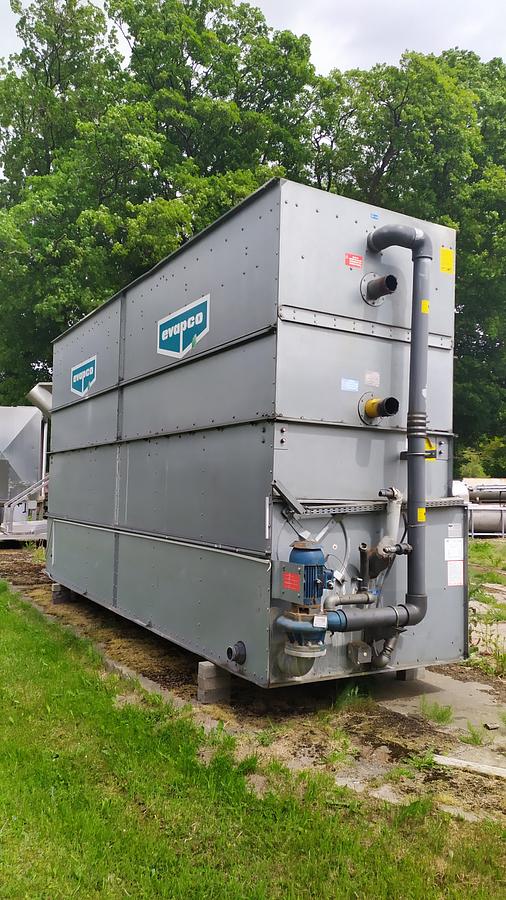

Spray-and-evaporative condenser EVAPCO LSCE 280-1g ammoniac condenser NH3 1045 kW

Industrial spray-evaporative condenser EVAPCO LSCE 280-1g with capacity of 1045 kW intended for NH3 refrigeration installations. The unit is used in cold rooms, freezers, food industry facilities and industrial installations requiring efficient ammonia vapor condensation. The EVAPCO evaporative condenser is characterized by high heat transfer efficiency, low energy consumption, and robust construction for year-round operation. The model is equipped with a 15 kW fan, a 2.2 kW water pump, and tray heaters enabling operation at temperatures down to -18°C.

Overall dimensions

• Length: 5 490 mm
• Width: 1 664 mm
• Height: 2 978 mm

Technical data

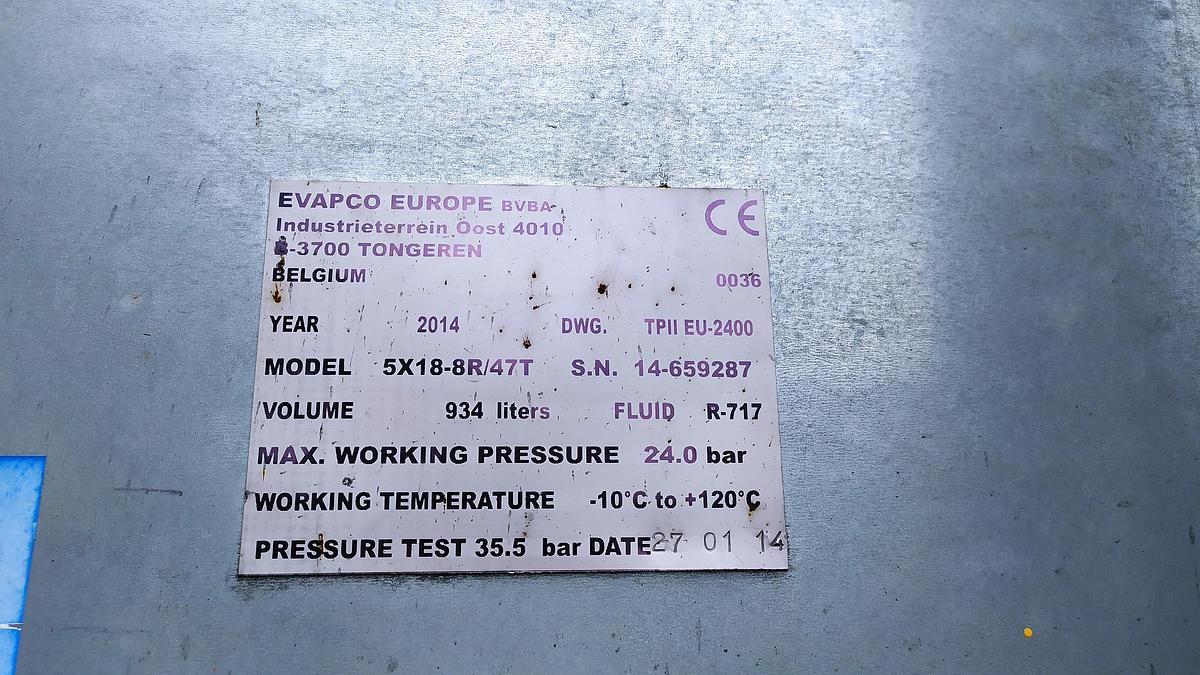

• Type: LSCE 280-1g Model 5X18-8R/47T
• Manufacturer: EVAPCO
• Serial number: 14-659287
• Year of manufacture: 2014
• Year of installation: 2014
• Application: condensation of ammonia (NH3)
• Total thermal output: 1 045 kW
• Refrigerant: NH3 (ammonia)
• Condensation temperature: +35°C
• Wet-bahrenheit? Wait: It's
• Maximum operating pressure: 24 bar
• Operating temperature range: from -10°C to +120°C

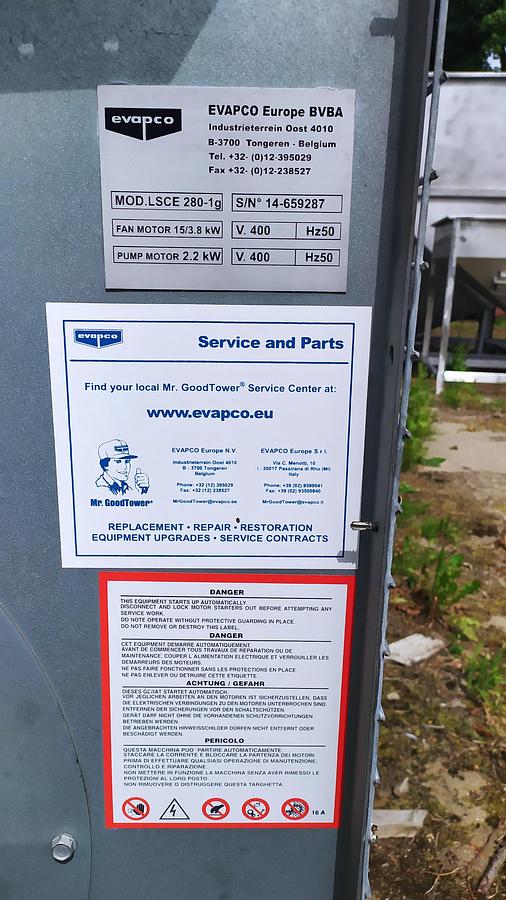

• Fan motor: 15.0 kW
• Water pump motor: 2.2 kW
• Heater trays (to -18°C): 2 × 4 kW
• Water flow: 32.5 l/s
• Evaporating water flow: 0.35 l/s
• Working mass (with water and NH3): 6 532 kg
