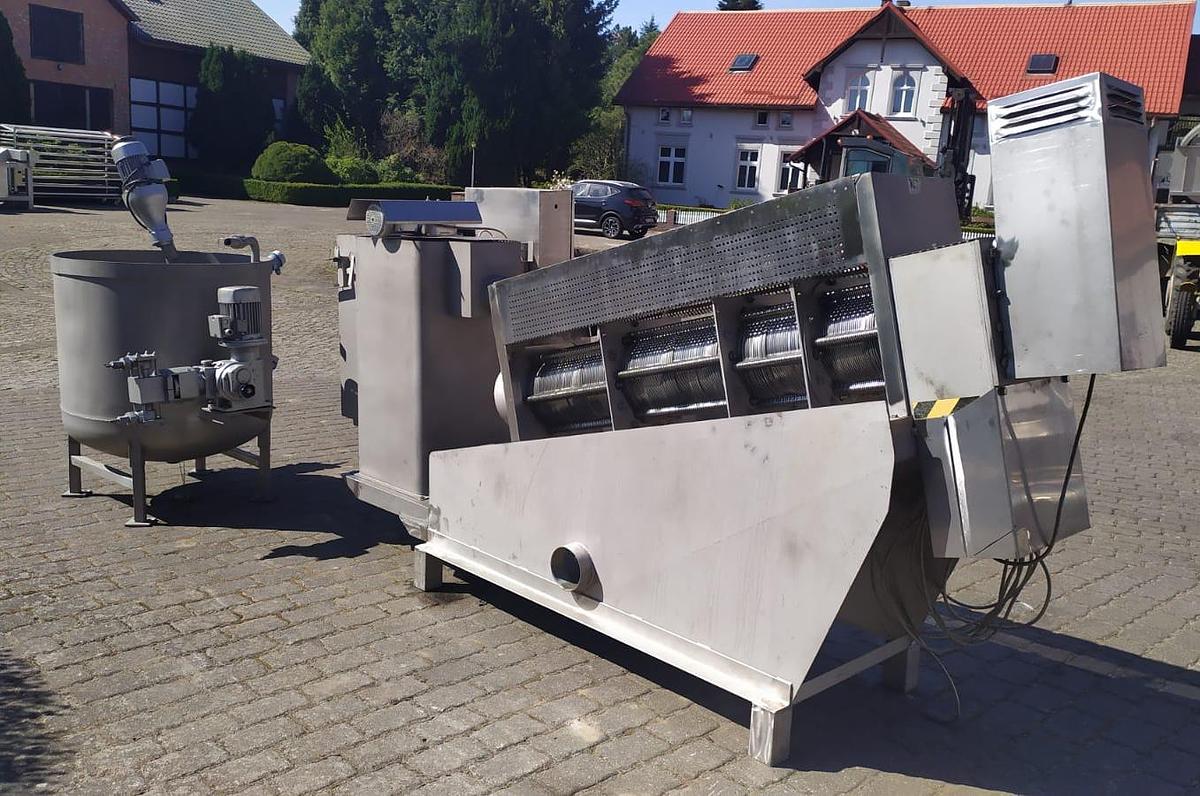

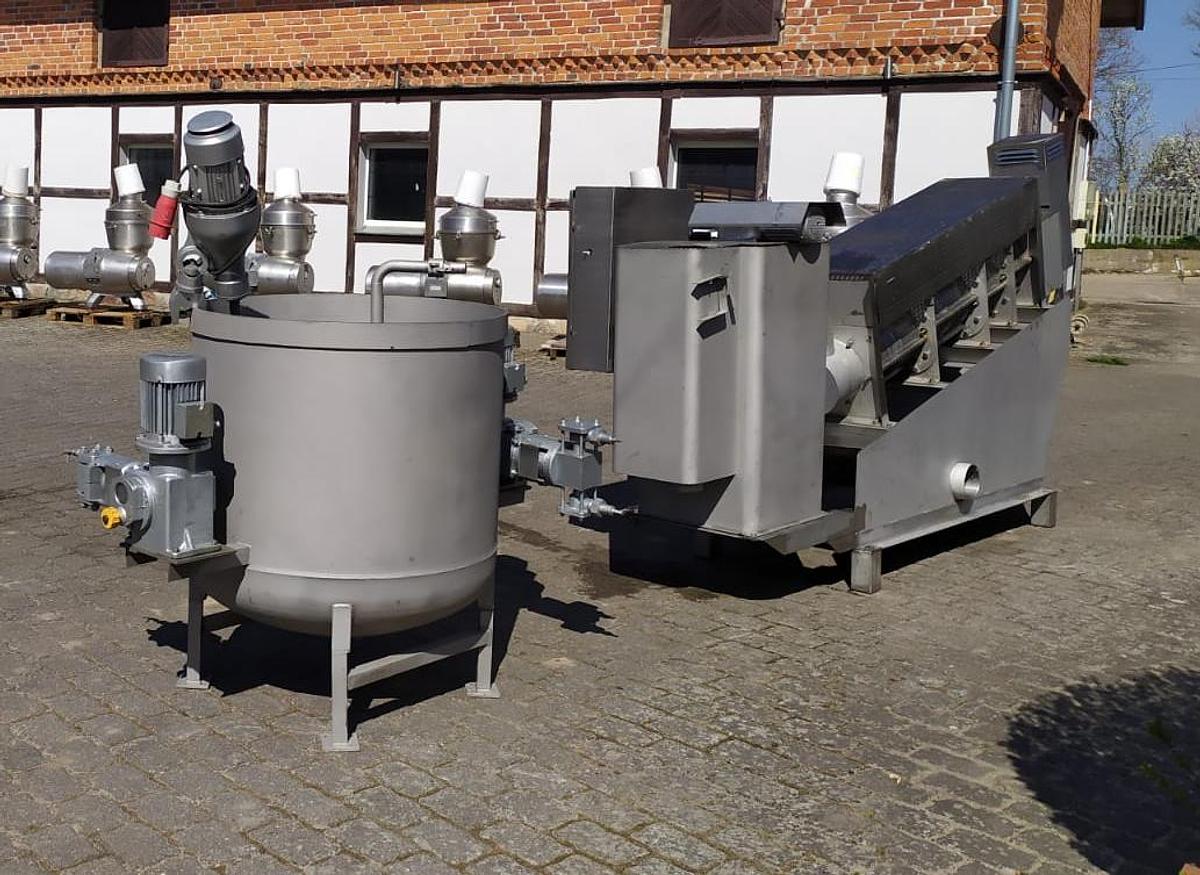

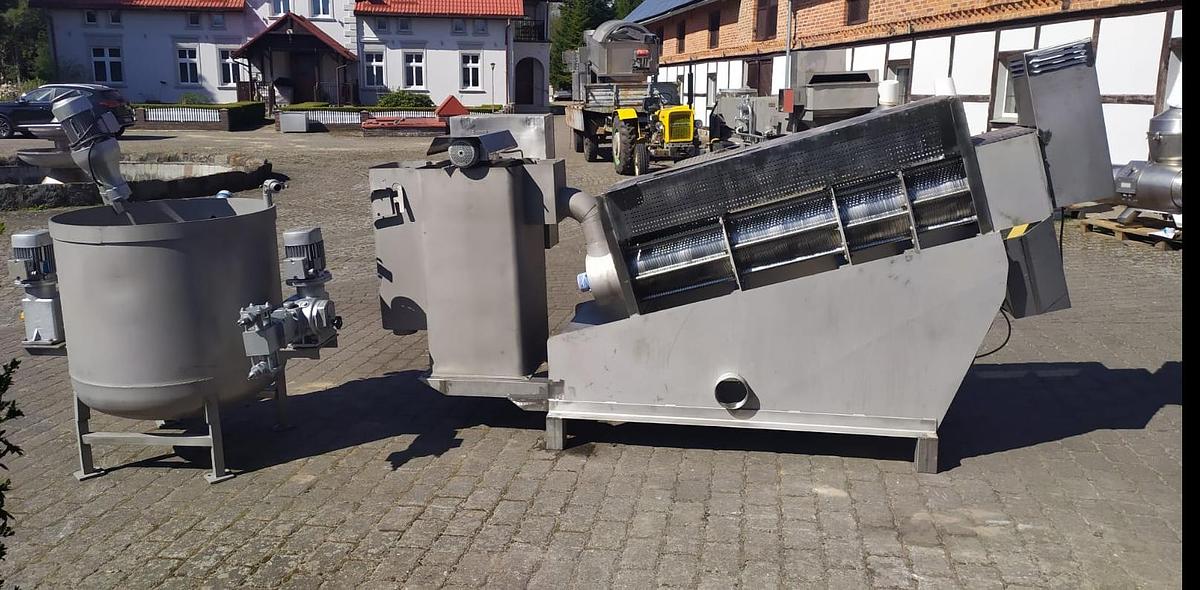

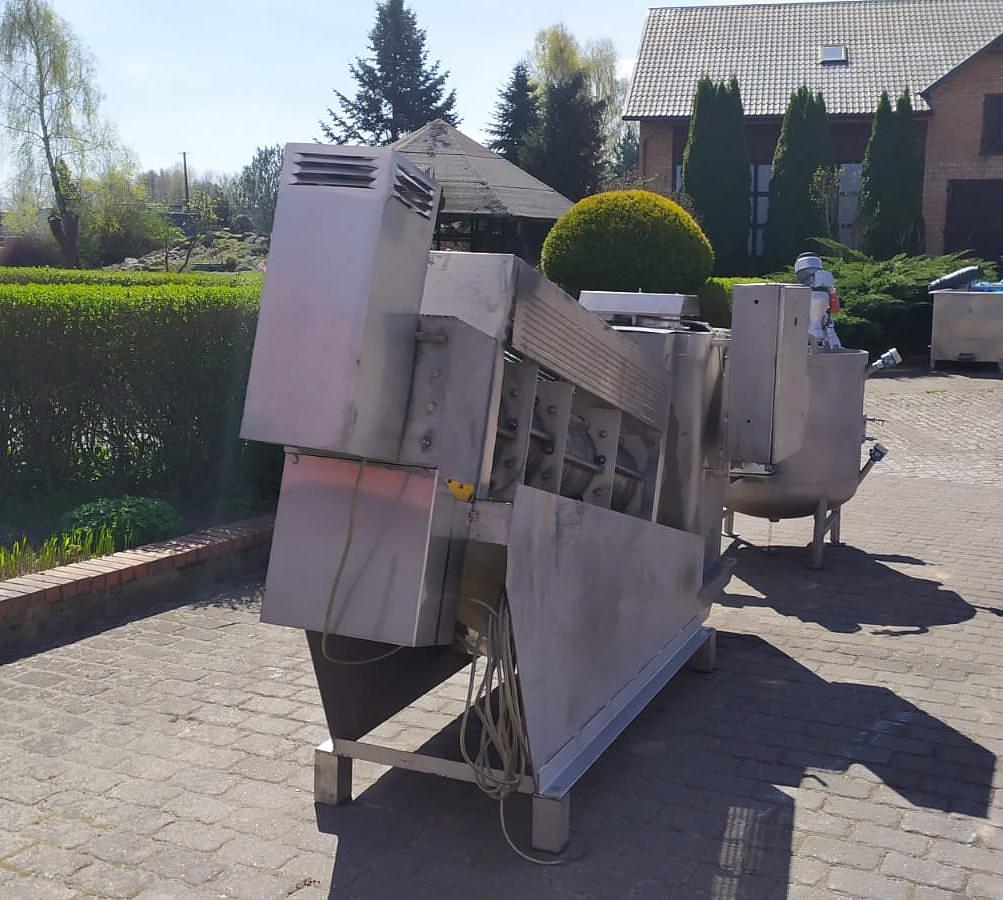

Screw press dewatering with a hopper for slurry pressing of raw material and an additional hopper for preparing and dosing the flocculant

 Screw dewatering press with a raw material dewatering tank for briquetting of the material and an additional tank for preparing and dosing the briquetting agent

The device is designed for effective compaction and dewatering of sludge in wastewater treatment plants, industrial facilities, and water and wastewater management installations. The device combines a dewatering section with an integrated system for preparing and dosing the coagulant agent, which ensures continuous operation and high efficiency of the process.

The use of a screw press technology enables effective water separation from sludge while reducing energy consumption and requiring minimal operator handling. Thanks to the two-compartment reservoir, the dewatering process proceeds evenly, directly improving the final parameters of the dewatered sludge.

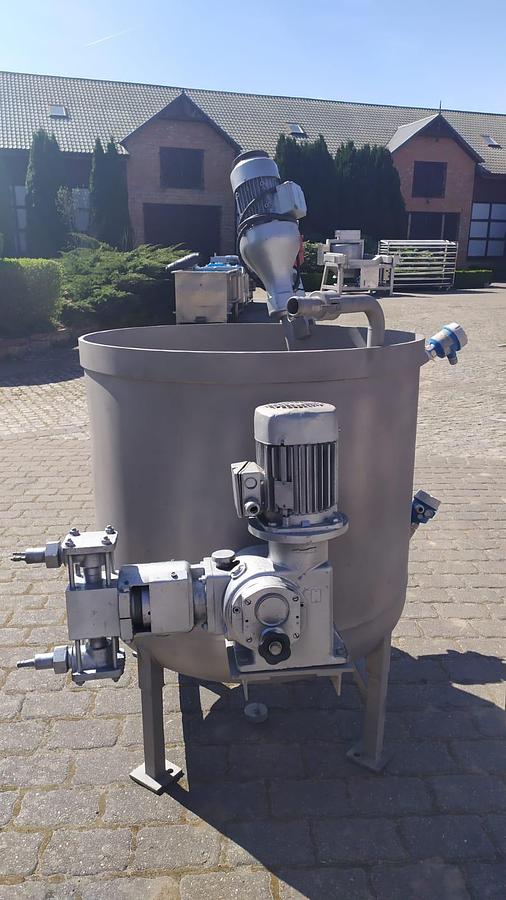

1. Tank for preparing and dosing the flocculant agent:

• width: 1500 mm
• height (with mixer): 1700 mm
• capacity: 500 l

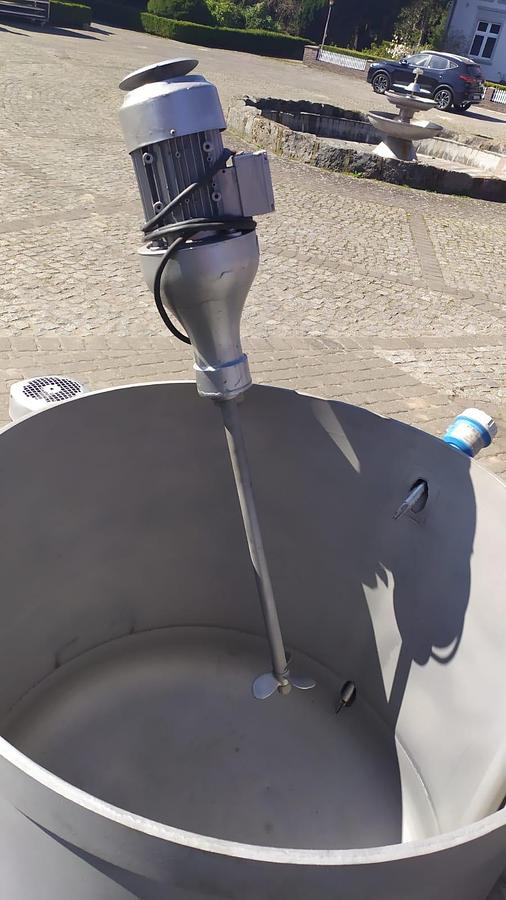

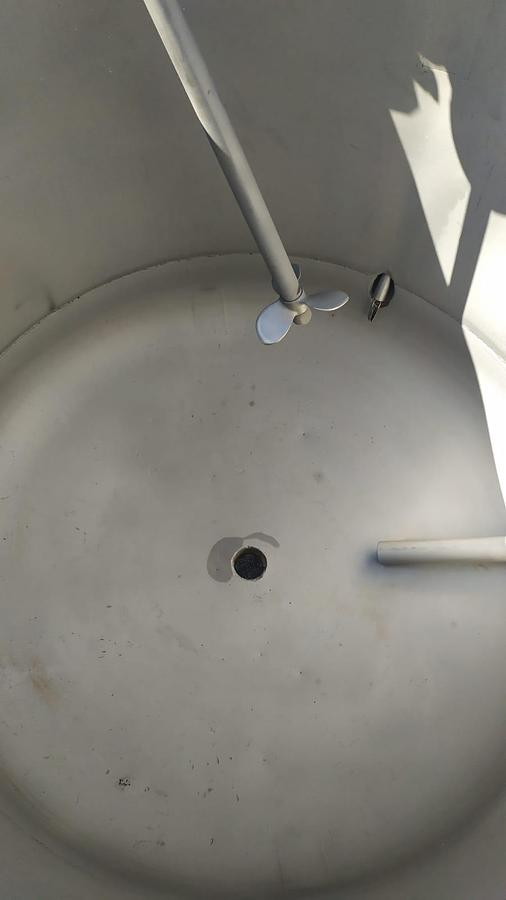

• propeller agitator: gearbox 0.33 kW
• dosing pump for preparation of the solution – with speed regulation
• pumping device for dosing suspension into the dewatering tank of raw material - with speed regulation
• liquid level sensors – lower and upper

Dimensional footprint of the press – items 2 and 3

• length: 3150 mm
• depth: 630 mm
• height: 1700 mm

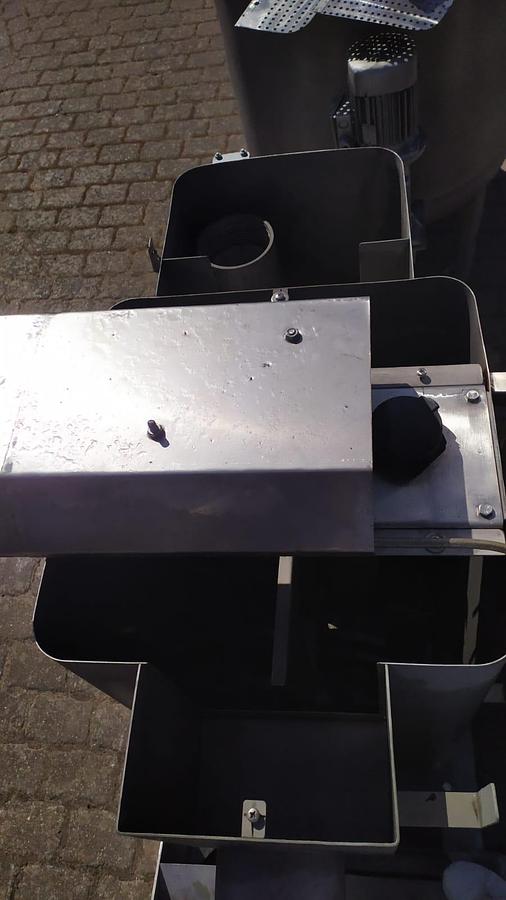

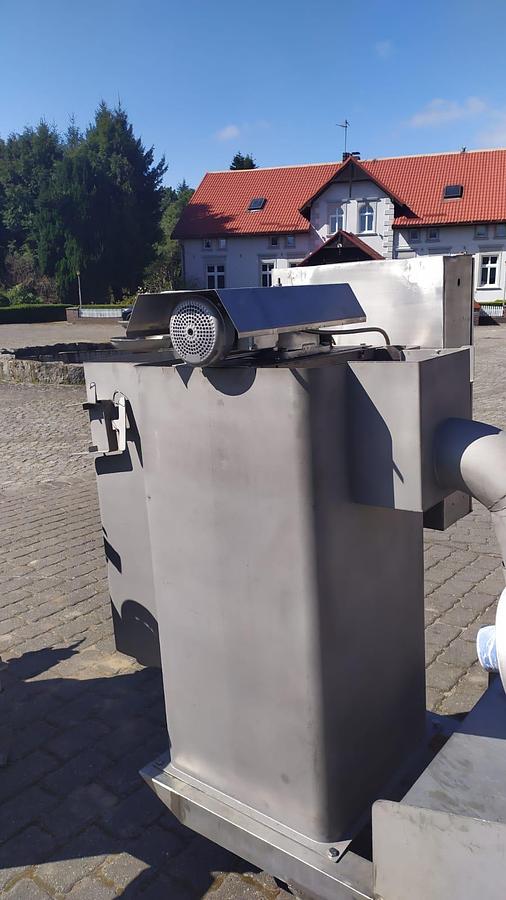

2. Two-chamber tank for briquetting the raw material:

- Go to raw material inflow

• width: 280 mm
• length:350mm
• depth: 800 mm
• inlet for raw material: Ø 65 mm
• overflow pipe: Ø 120 mm

- Grodź II for compaction of raw material

• width: 500 mm
• length: 500 mm
• depth: 1000 mm
• start-up nipple: Ø65mm
• frame agitator of the raw material – gearbox 0.25 kW/1440 rpm
• inlet elbow delivering raw material to the dewatering screen: Ø 120 mm

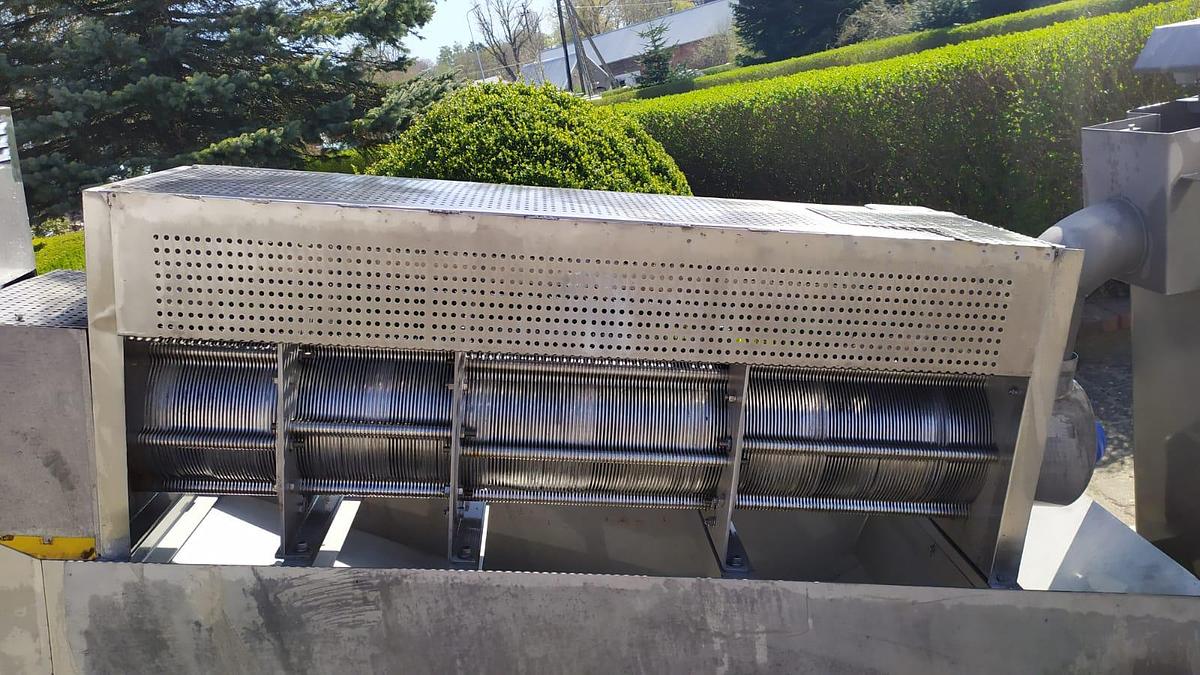

3. Drainage section:

• length: 1750 mm
• screw diameter: 280 mm
• worm drive: gearbox 0.5 kW / 1440 rpm
• water withdrawal valve with side discharge – Ø 120mm
• drain pipe for sludge – front rectangular

4. Electrical cabinet with process control

Key features of the device:

• integrated dewatering and polymer preparation system
• stable and efficient operation thanks to the use of gear motors
• possibility of precise dosing of the binding agent
• compact construction facilitating installation in limited space
• full electrical control ensuring convenient operation
