Flotation scrubber - "KMB-05" - Hungarian production

Flotation scrubber - "KMB-05" - Hungarian production It is used for washing and rinsing green pea pods

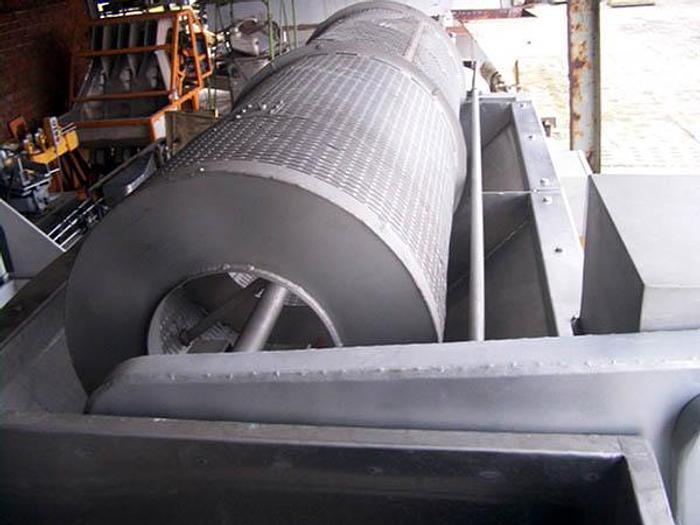

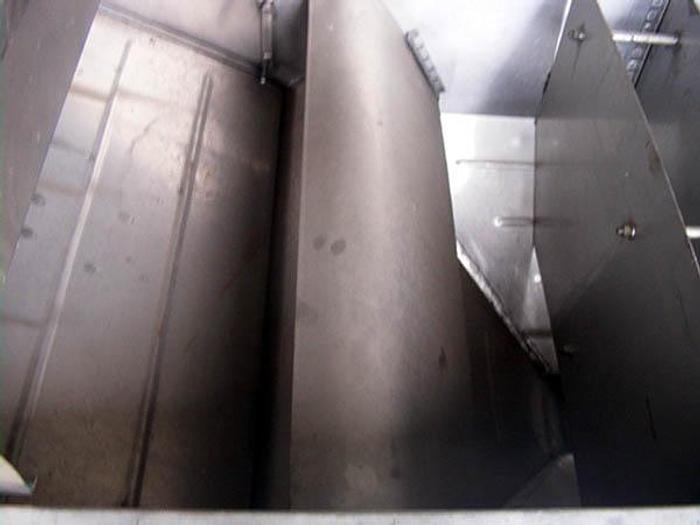

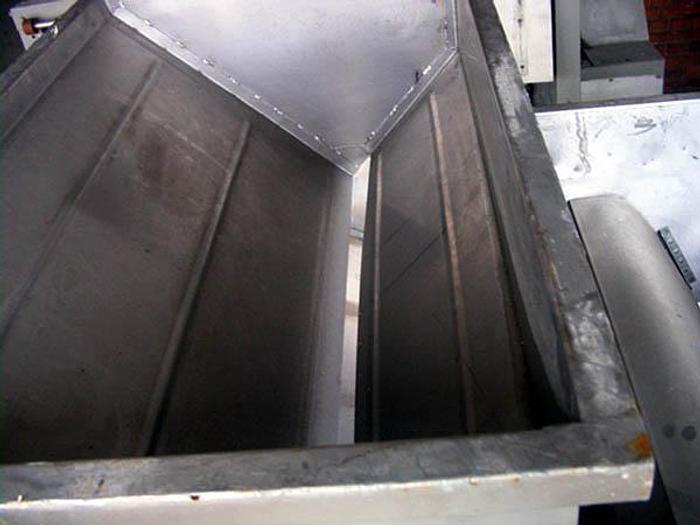

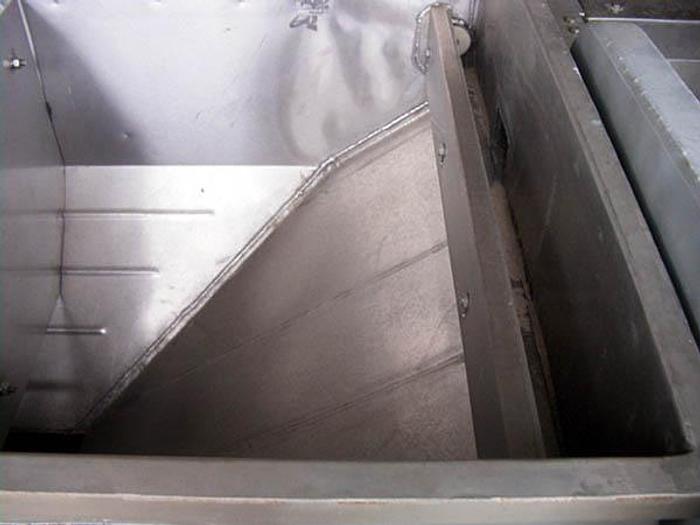

Overall dimensions: * length - 5.200 mm + steps; * width - 1.870 mm + 200 mm; * height - 2.400 mm. Dimensions of stainless drums: * length of the upper drum separating whole peas and half peas - 2.000 mm; * diameter of the upper drum separating whole peas and half peas - 640 mm; * length of the bottom drum separating the halves from the water - 1,000 mm; * diameter of the bottom drum separating the halves from the water - 370 mm. Dimensions of a stainless steel tank for the separation of pods, leaves and stones. * length - 2.600 mm; * width - 1.100 mm; * depth - 1.100 mm. Dimensions of the stainless raw material charge: * length - 1.100 mm; * width - 680 mm; * height - 420 mm. Technical data: * water consumption - 7 m3 / h; * capacity up to 8.000 kg / h; * scrubber engine power - 0.7 kW; * pump motor power - 2.5 kW; * power supply - 3 ~ 380 V / 50 Hz.
