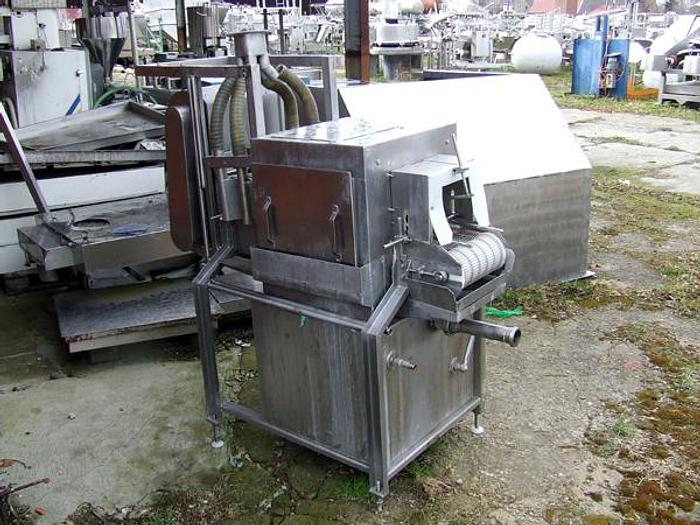

Stainless steel washer-blower

Stainless steel washer-blower

The stainless steel washer-blower is an industrial device designed for washing and drying containers, jars, bottles, and other packaging in production lines. The machine ensures efficient cleaning thanks to an advanced nozzle and air blowing system, guaranteeing hygiene and high quality of the technological process.

Application of the washer-blower

The device enables:

• effective cleaning of containers inside and outside,

• blowing water off containers after washing,

• adjustment of packaging transport for different container heights and widths,

• integration with production lines in the food and beverage industry.

Overall dimensions

• Total length: 1,440 mm

• Total width: 680 mm

• Total height: 1,600 mm (without blower)

Conveyor and section dimensions

• Mesh belt length: 1,270 mm

• Mesh belt width: 240 mm

• Washing chamber length: 500 mm

• Blowing section length: approx. 400 mm

Technical data

• Manufacturer: Empting Maschinenbau GmbH, Cuxhaven, Germany

• Device number: 13113

• Conveyor belt: mesh, stainless steel

• Container adjustment: width and height

• Washing section: 18 nozzles (5 top, 2×5 side, 3 bottom)

• Water circulation pump for optimal washing performance

• Blowing system: air from the blower distributed via a manifold into 5 channels; narrow-slot blowers – 2 on each side and 1 above the belt (top container blowing)

• Mesh filter assembly: between the washing chamber and water tank for filtration and pump protection

Advantages of the device

• fully stainless steel construction – resistant to corrosion and chemicals,

• high hygiene and cleanliness of containers,

• adjustable width and height – for container versatility,

• efficient blowing system ensuring drip-free drying,

• easy integration with existing production lines.
