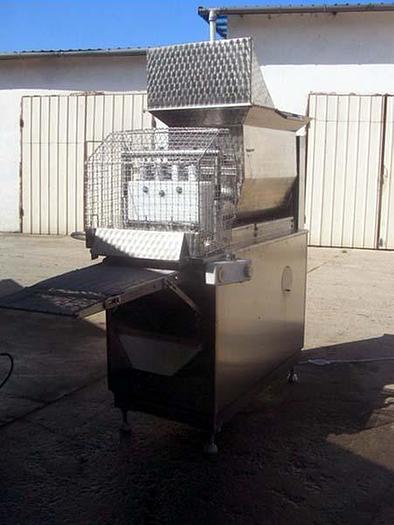

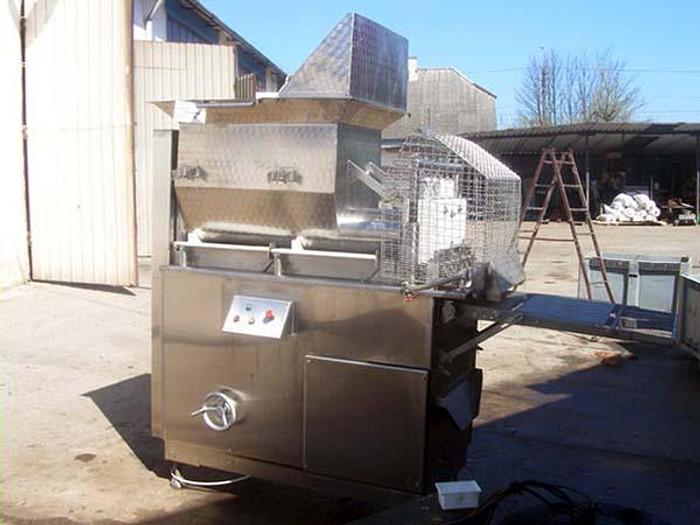

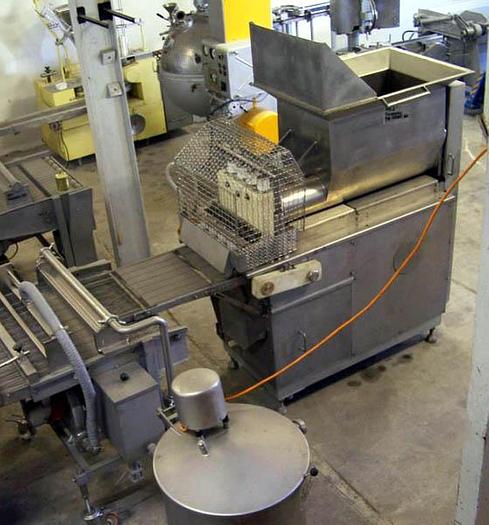

Molding machine type GIGANT M6 - producer "Square" Sweden

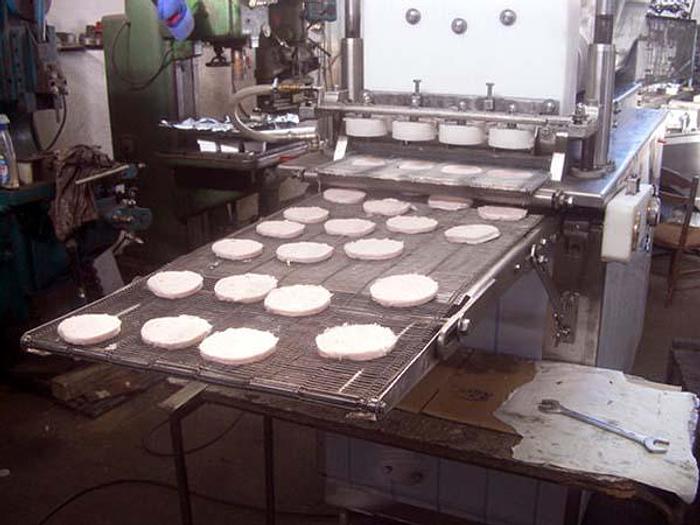

Forming machine type GIGANT M6 - producer "Square" Sweden Standard equipped with a forming plate with 4 slots for round flat chops (hamburgers). The machine can form different shapes of flat cutlets depending on the shapes of the nests in the forming plate.

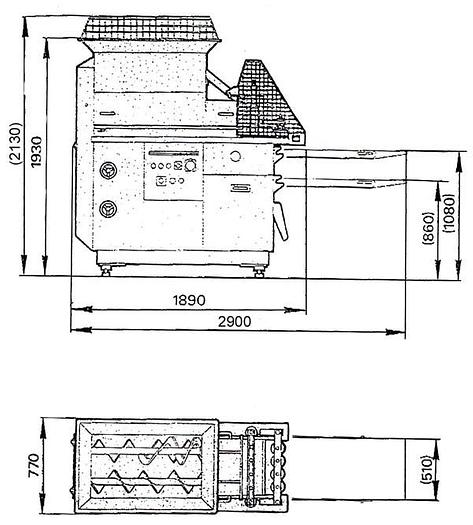

Dimensions: * length - 2.900 mm (1.890 mm without the dispensing conveyor); * width - 770 mm; * height - 1.930 mm. Technical data: * belt width - 500 mm; * forming speed - 20-50 tacts / min; * width of the forming plate 480 mm; * max. loading bay capacity - 270 kg; * minimum temperature of the formed stuffing - 2 ° C; * total power requirement - 7.1 KW; * capacity for meat - 4,800 to 12,000 portions / h with a 4-cavity forming plate and proportionally

higher with plates with more slots; * device weight - 1.890 kg.
