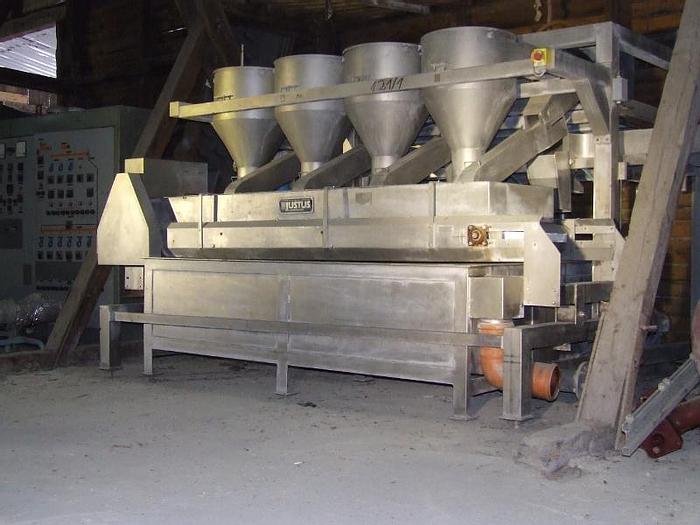

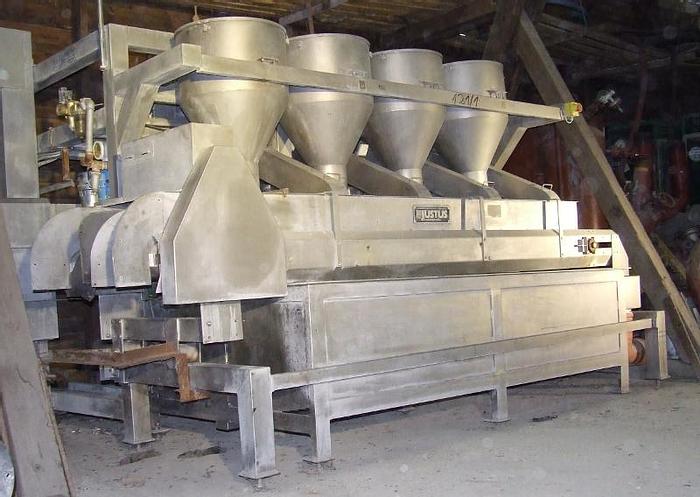

Sorting machine - "JUSTUS MHS-QUADRIGA ALTERNA"

Sorting Machine – “JUSTUS MHS-QUADRIGA ALTERNA”

A machine designed for the precise sorting of small fruits and vegetables, such as green peas, as well as cut vegetables, including carrots, beets, and celery. The machine operates in a closed-loop water circulation system, allowing efficient and economical use of resources during the production process.

The machine enables products to be sorted according to the desired color of the finished product before the freezing process, which significantly improves the final quality and uniformity of the product.

The machine structure is made of stainless steel, ensuring high durability, resistance to operating conditions, and compliance with hygiene standards required in the food industry.

Overall dimensions:

• Width: 4,100 mm
• Depth: 3,000 mm
• Height: 2,200 mm

Technical data:

• Electrical power requirement: 14 kW
• Air pressure: 6–8.5 bar
• Water consumption: closed-loop circulation
• Water replenishment: approx. 600 l/h

Capacity (depending on the product):

• Green peas: up to 4 t/h
• Diced potatoes 10 × 10 × 10 mm: up to 4 t/h
• French fries 10 × 10 mm: up to 6 t/h
