Stainless steel washer for big-boxes and pallet-boxes

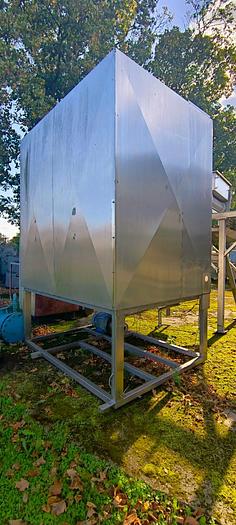

Stainless steel washer for big boxes and pallet boxes Dimensions: - Length - 2,800 mm; - Width - 1,800 mm; - Height - 3,700 mm. Overall dimensions of the tipper: - Depth - 600 mm; - Width - 1,300 mm. Technical description of the device: The device is equipped with a system of washing nozzles with movable

arms allowing for simultaneous external and external washing internal pallet boxes. The device is adapted to washing box-pallets

with dimensions: 1,200 x 1,000 x 780 mm. The device is equipped with a horizontal, rotary filter -

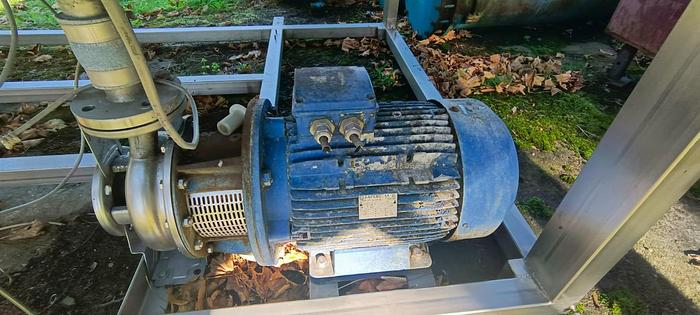

slot filter with a tank - stainless steel version. It is placed under the device on the supporting structure

of the washer next to the pump. Filter dimensions: - Total length - 2,350 mm; - Total width - 1,700 mm; - Total height - 870 mm. Technical data: - Length of the filter drum - 1,000 mm; - Diameter of the filter drum - 500 mm.
