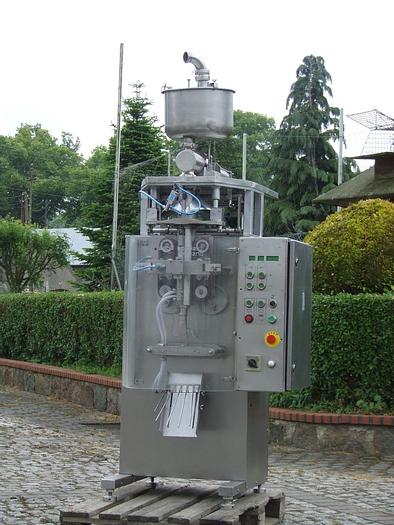

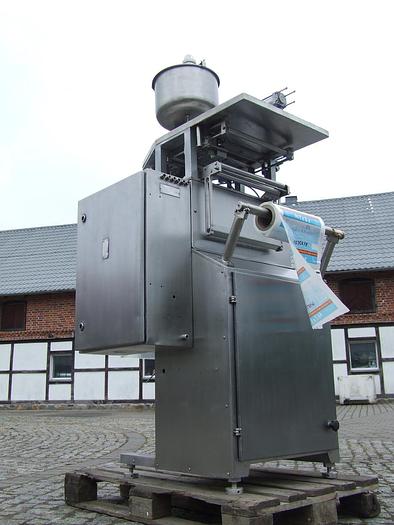

Polyethylene Bag Liquid Product Packing Machine "ASG-3"

Machine for packing liquid products in polyethylene bags "ASG-3" Forms, doses and closes. Dimensions: - Length - 880 mm; - Width - 895 mm; - Height - 1,950 mm. Technical data: The size of the bags: - Standard width - 140 mm; - Special version - 110 - 180 mm, stepped every 10 mm; - Length - 60 - 300 mm, continuously adjustable. Performance: - For 1/4 l bags - 40 min^-1 - 600 l/h; - For 1/2 l bags - 35 min^-1 - 1,050 l/h; - For 1 l bags - 30 min^-1 - 1,800 l/h. Electro-pneumatic control: - Pressure - 0.6 - 0.8 MPa; - Demand - 20 m³/h. Electric supply:

- Voltage (1-phase) - 220V, 50Hz; - Power - 1 kW. Weight - 360 kg.
