Loading bunker

Charging bunker

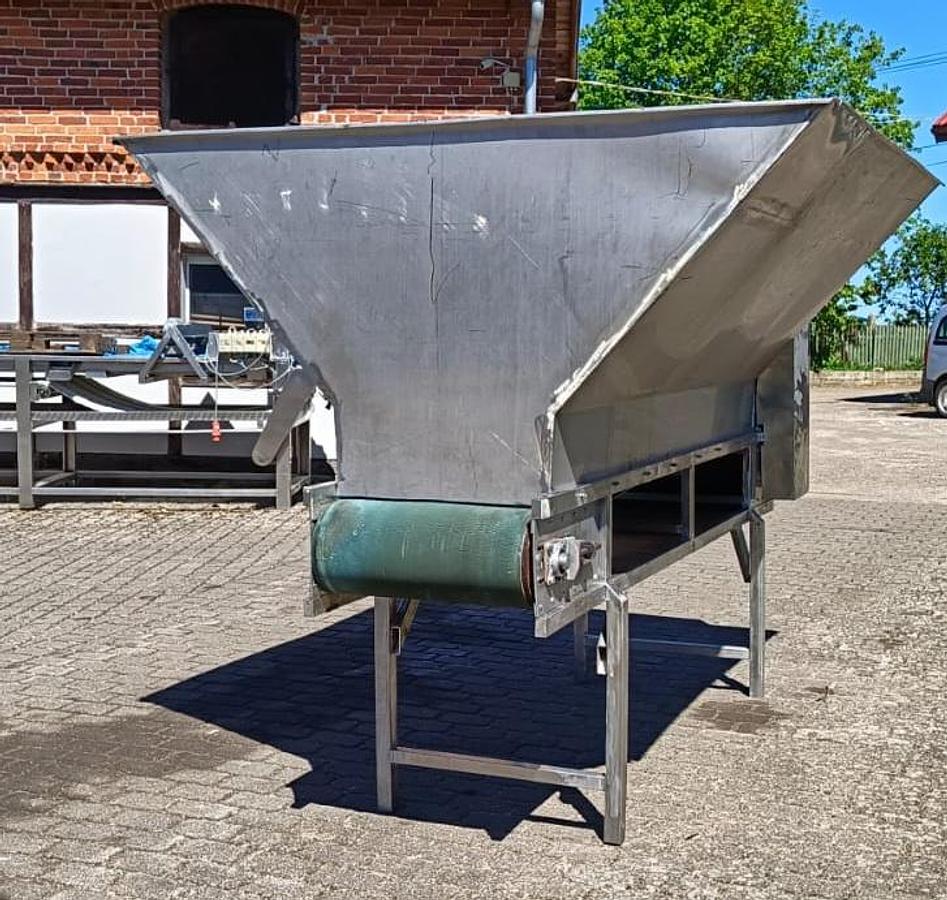

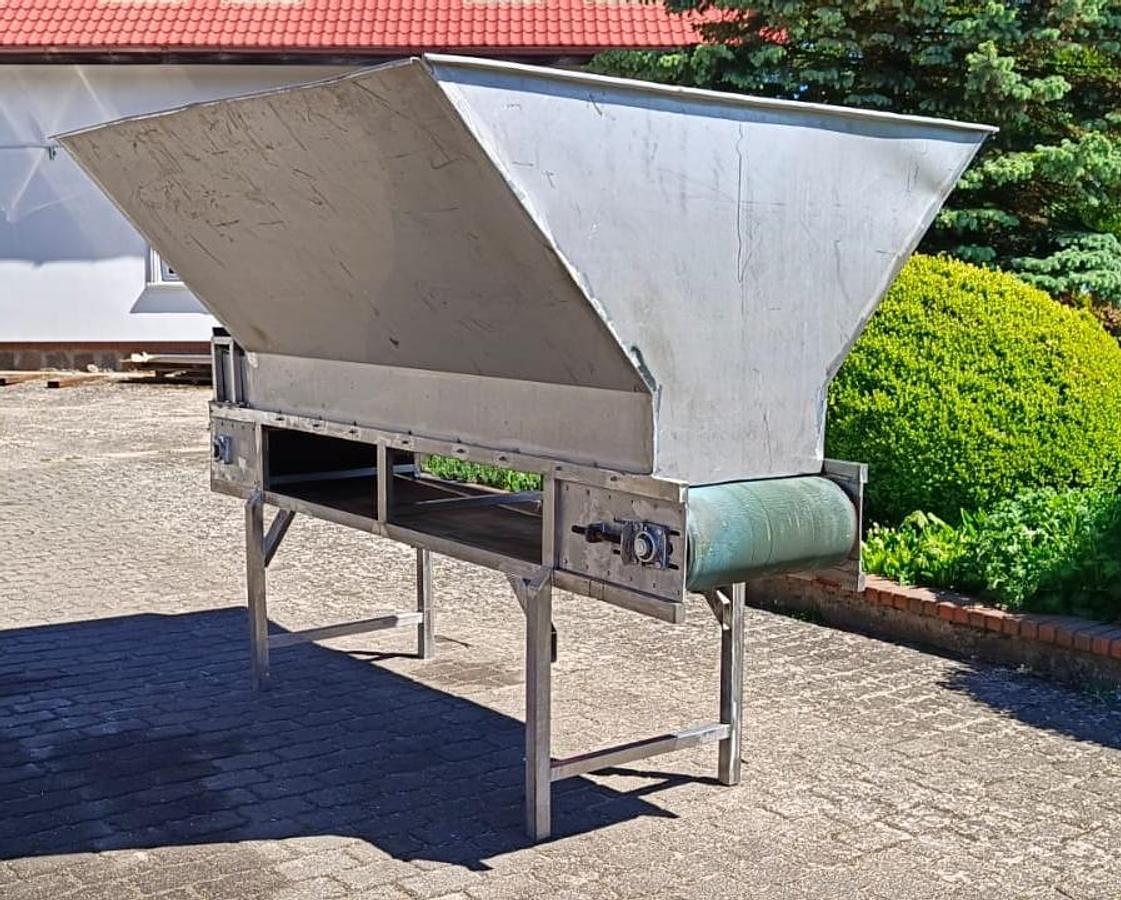

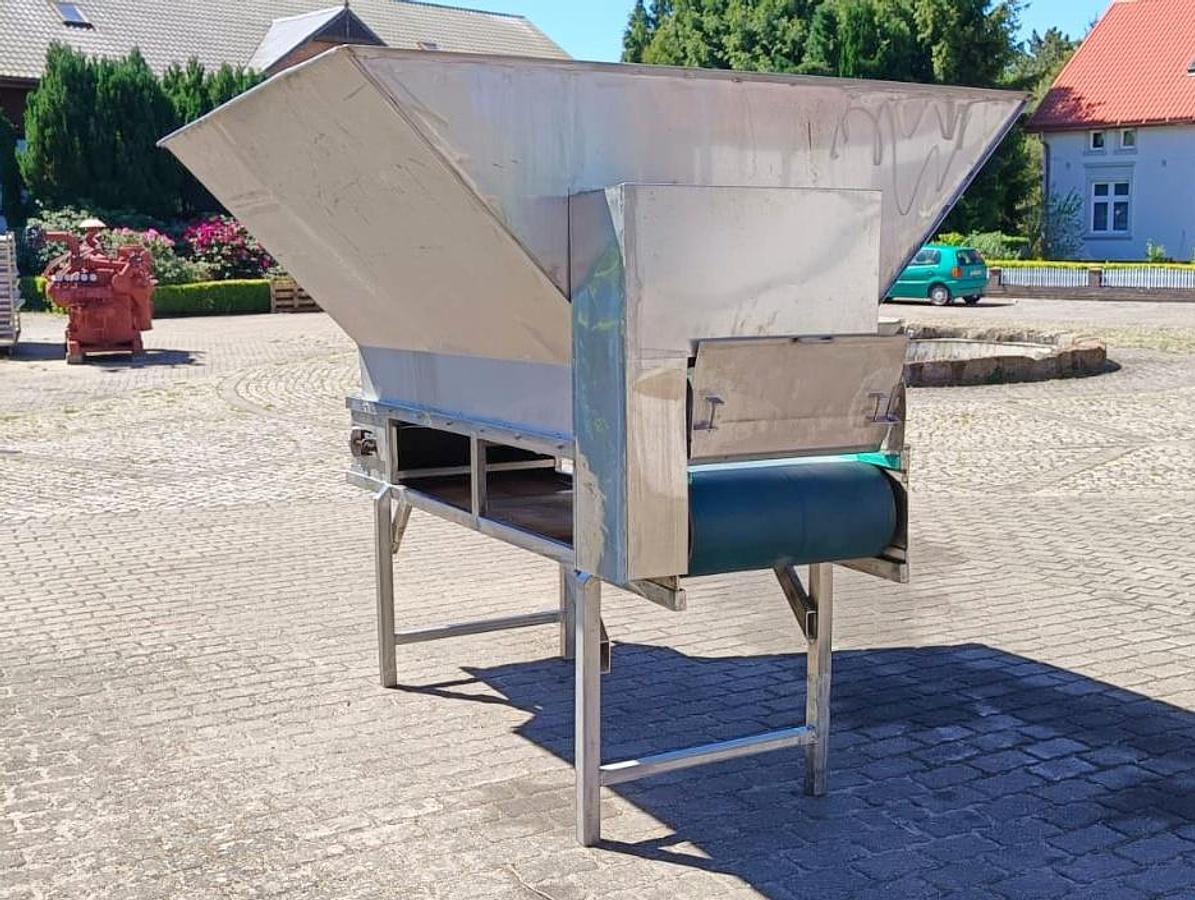

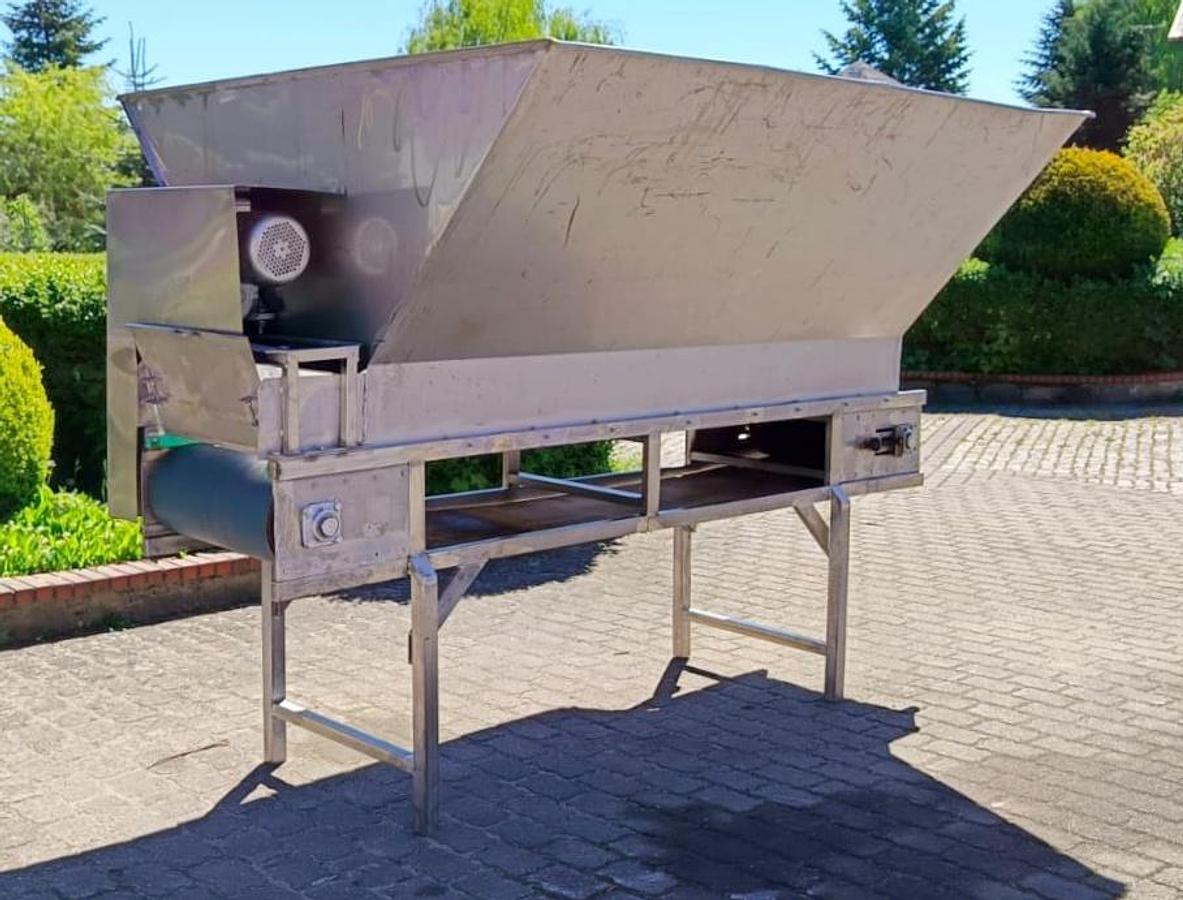

The hopper feeder is an industrial device designed for storing and evenly feeding bulk and granular materials to subsequent stages of the production process. With its large capacity and integrated belt conveyor system, the hopper ensures continuous operation of the production line and precise control of material flow.

Key Advantages

• Large working capacity: 3.4 m³
• Even material feeding via belt conveyor
• Smooth drive speed adjustment
• Stable and robust industrial construction
• Continuous operation capability
• Easy integration with other equipment in the production line

Overall Dimensions

• Length: 2,800 mm
• Width: 2,000 mm
• Height: 2,200 mm

Technical Data

• Total capacity: 3.4 m³
• Belt width: 600 mm
• Belt length: 2,360 mm
• Drive: 0.25 kW / 680 rpm with gear motor 1,400 / 500
• Smooth speed adjustment

Hopper Dimensions

• Capacity: 3.4 m³
• Length: 2,300 mm
• Top width: 2,000 mm
• Bottom width: 650 mm
• Height: 990 mm

Applications

The hopper feeder is used for:

• Bulk materials
• Granules
• Grains and agricultural raw materials
• Technological-production mixtures
• Industrial semi-finished products
