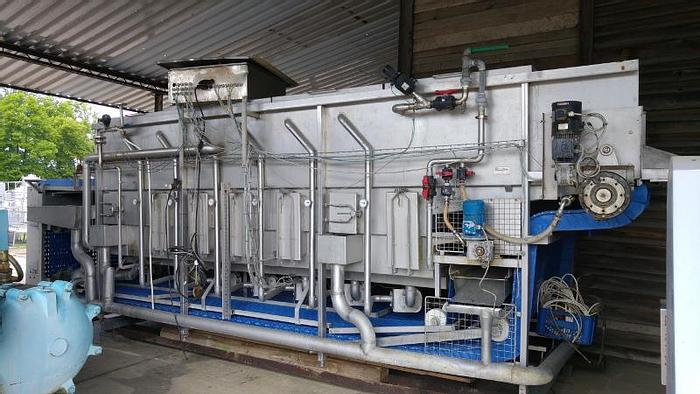

Water cooler, belt "CABINPLANT", serial number 10540-10-001

Water cooler, belt "CABINPLANT", serial number 10540-10-001

The CABINPLANT belt water cooler is an industrial machine designed for intensive and uniform cooling of food products after heat treatment processes such as blanching or cooking. The belt design combined with a multi-section spray system ensures effective temperature reduction while preserving product quality, structure, and sensory attributes.

The device is designed for continuous operation in modern food processing lines.

Overall dimensions

• Total length: 6,550 mm

• Total width: 2,320 mm

• Total height: 2,300 mm

Technical and construction data

Product distribution system

• Screw conveyor for even distribution of the product on the belt

• Working length of the belt: 6,200 mm

• Working width of the belt: 1,850 mm

Cooling system

• 6 spray sections for intensive product cooling

• 6 pumps supplying the spray sections:

o each pump: motor 0.55 kW, 1,395 rpm

• Circulation pump: 0.55 kW, 1,395 rpm

The multi-section spray system enables gradual and controlled cooling of the product.

Transport system

• Modular polyethylene belt:

o belt length: 5,250 mm

o belt width: 465 mm

• Belt drive:

o speed reducer

o motor 0.37 kW, 1,235 rpm

The belt provides stable product transport and high resistance to water and low temperatures.

Other elements

• Waste collection tank

• Integrated CIP washing and rinsing system

• Construction: stainless steel (entire)

Features and advantages

• Efficient and uniform water cooling

• Continuous operation, ideal for high capacities

• CIP system for fast and hygienic cleaning

• High durability and corrosion resistance

• Complies with food industry hygiene standards

• Easy integration with blanchers and other line equipment

Applications

The CABINPLANT belt water cooler is used in:

• Vegetable and fruit processing plants

• Frozen food production lines

• Food industry requiring rapid product cooling

• Modern processing installations with high hygiene standards
