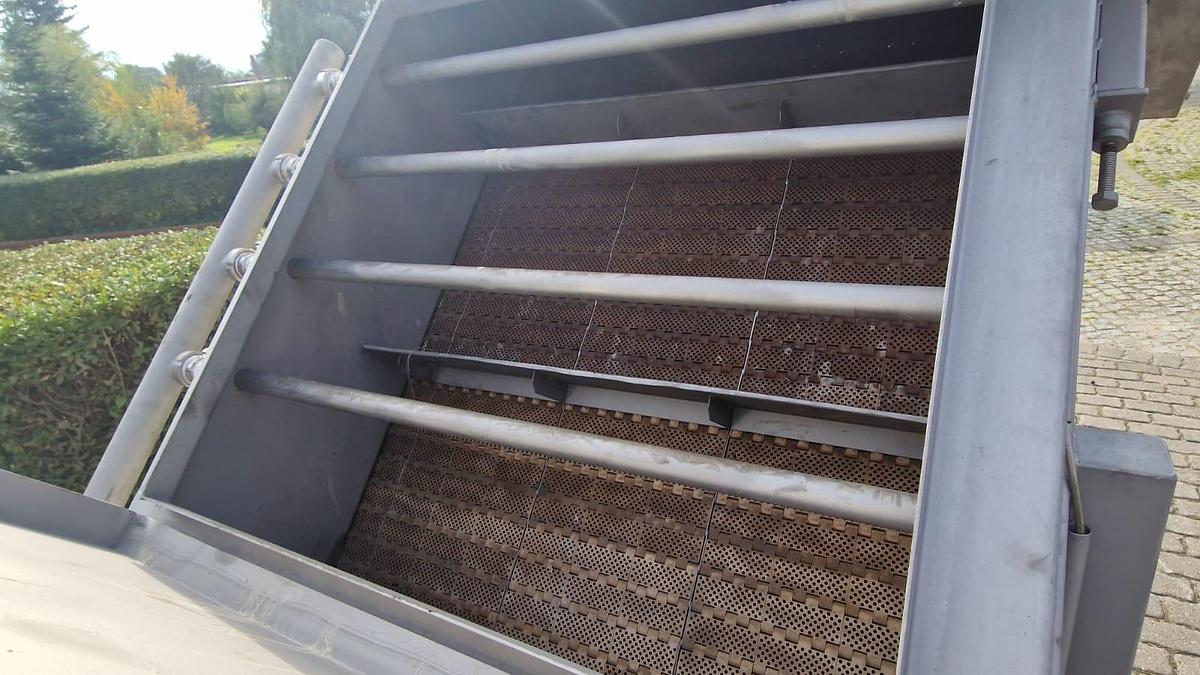

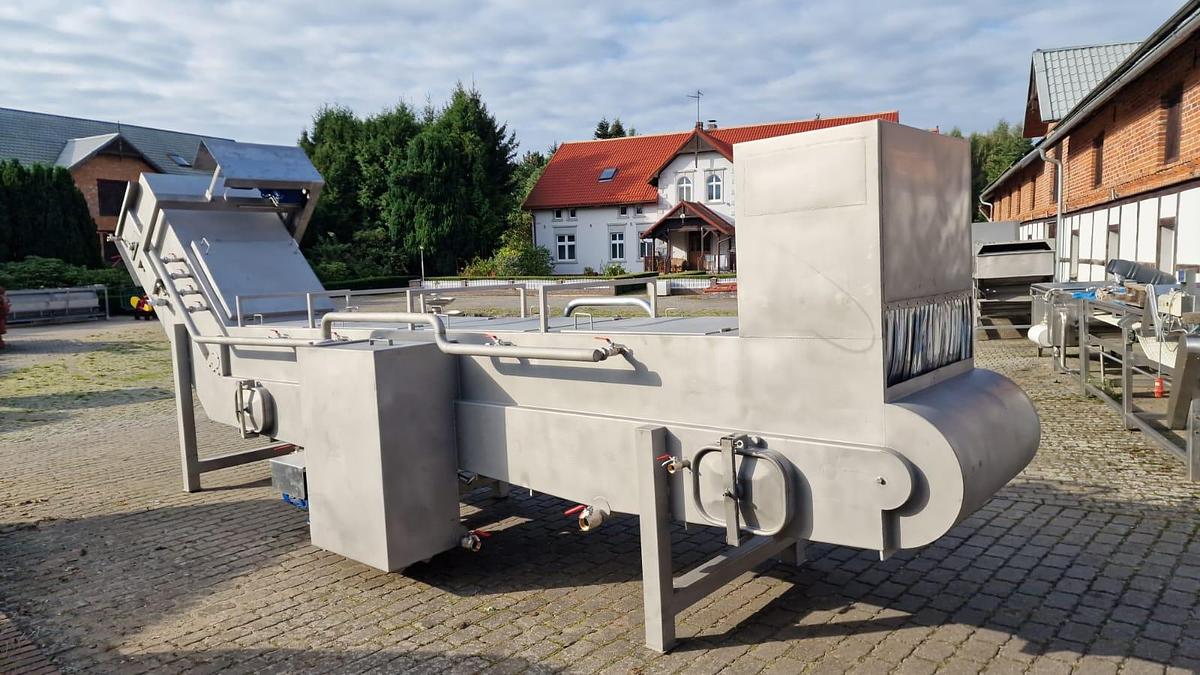

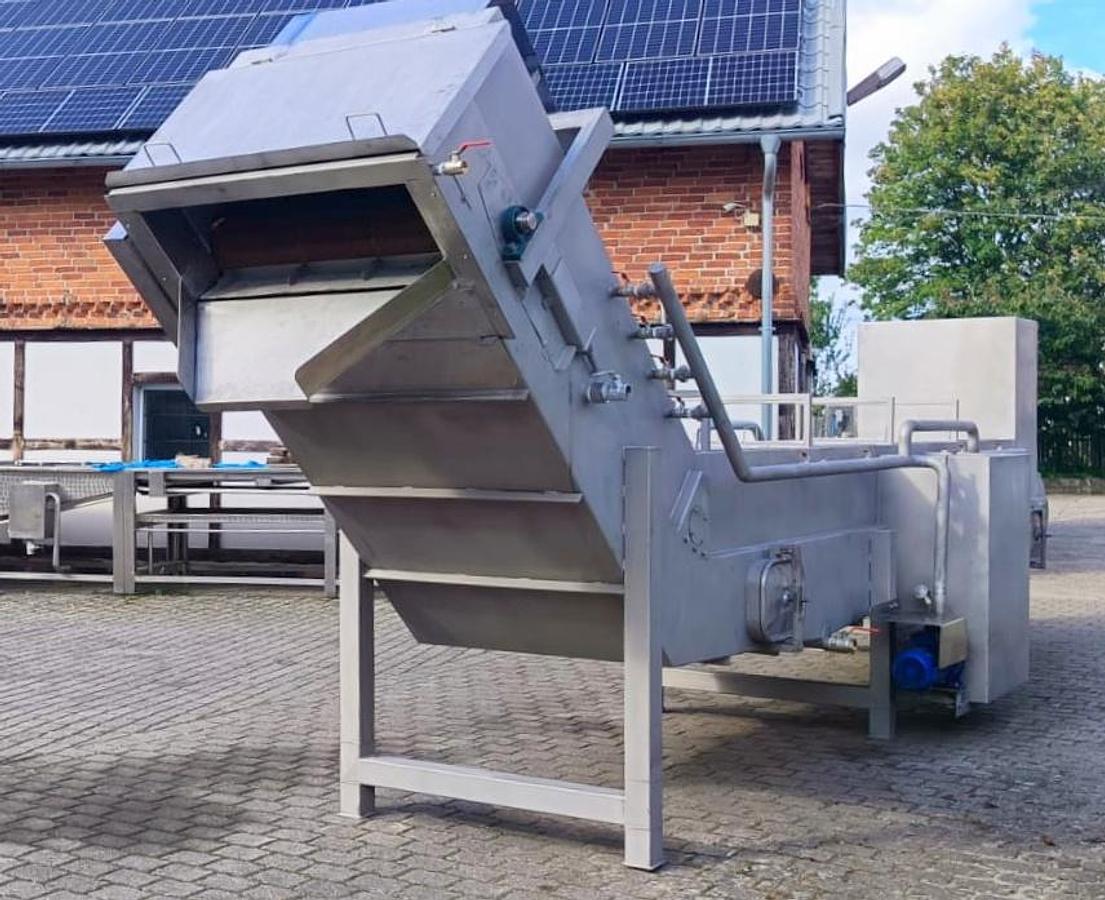

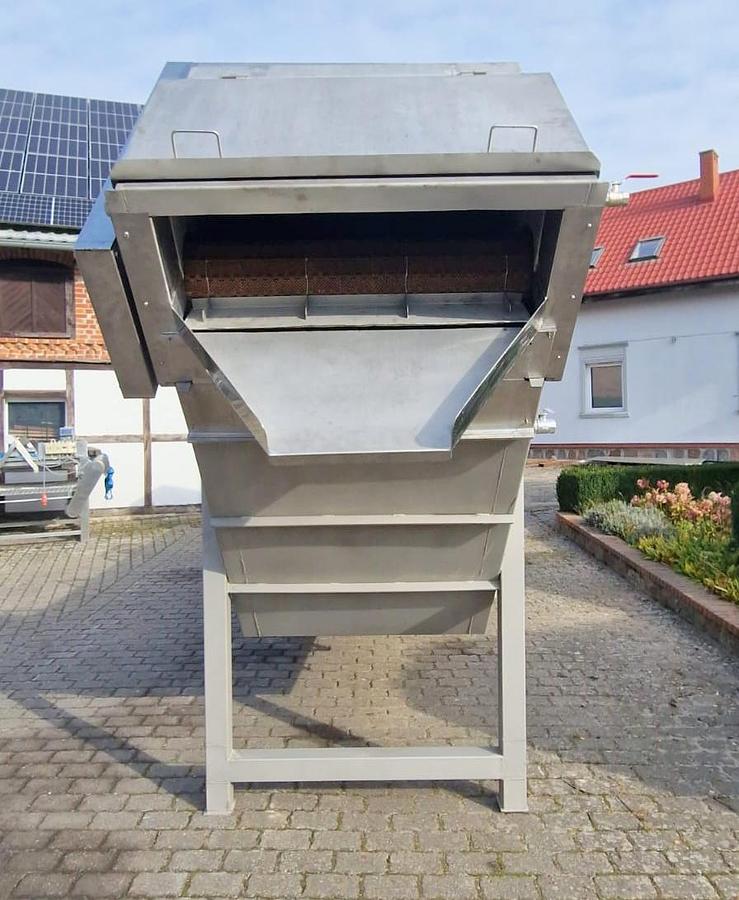

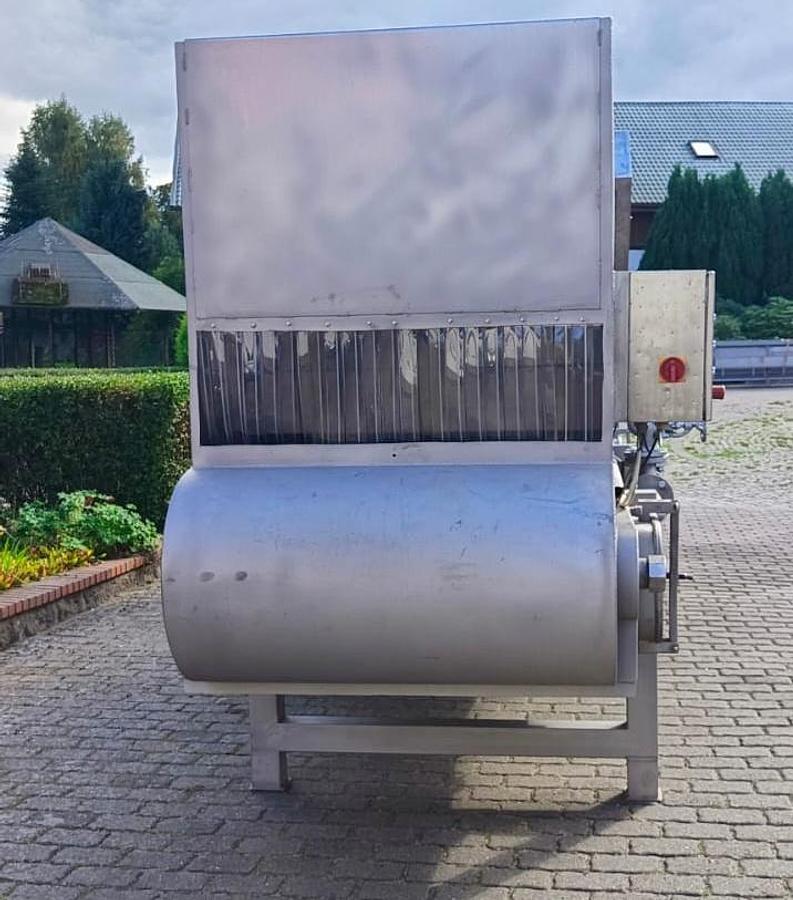

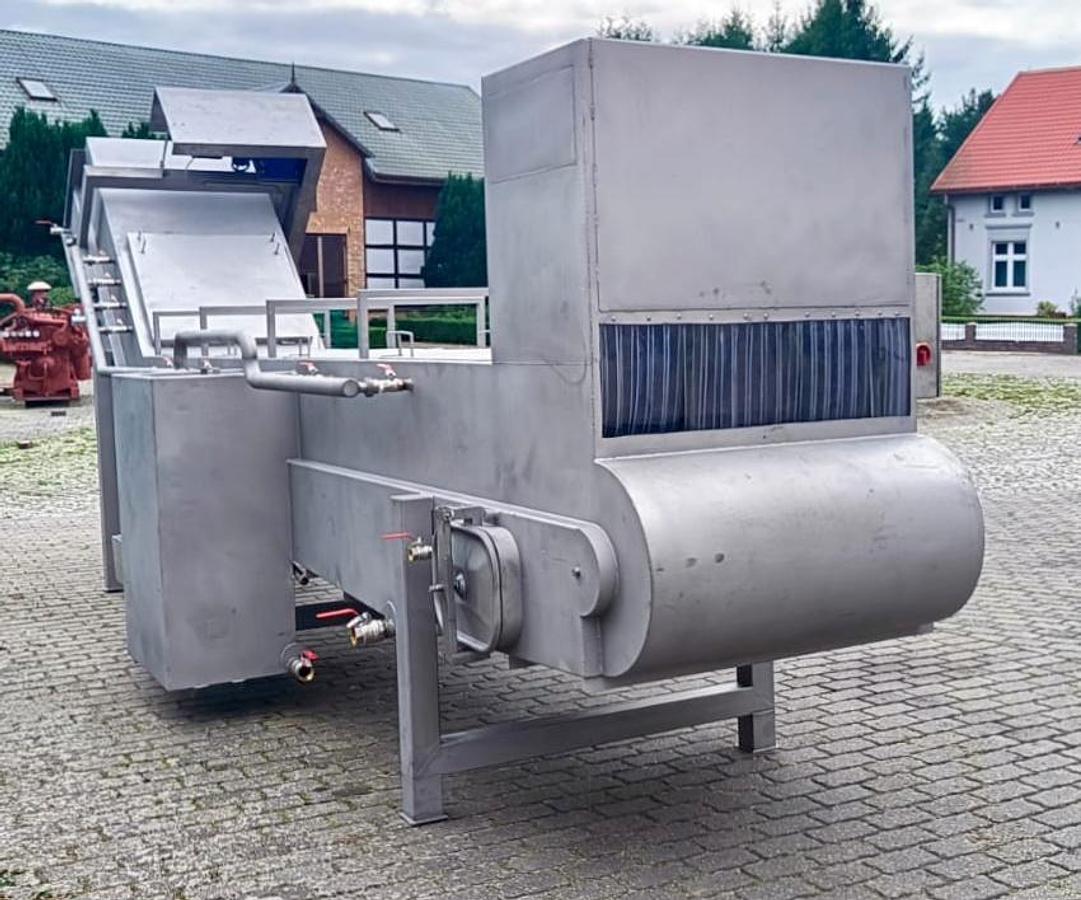

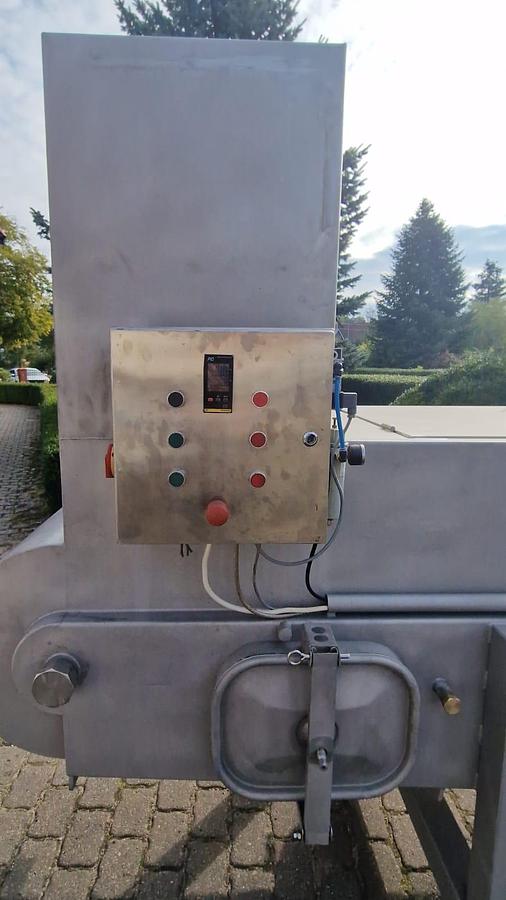

"MEYN" belt blancher

"MEYN" belt blancher

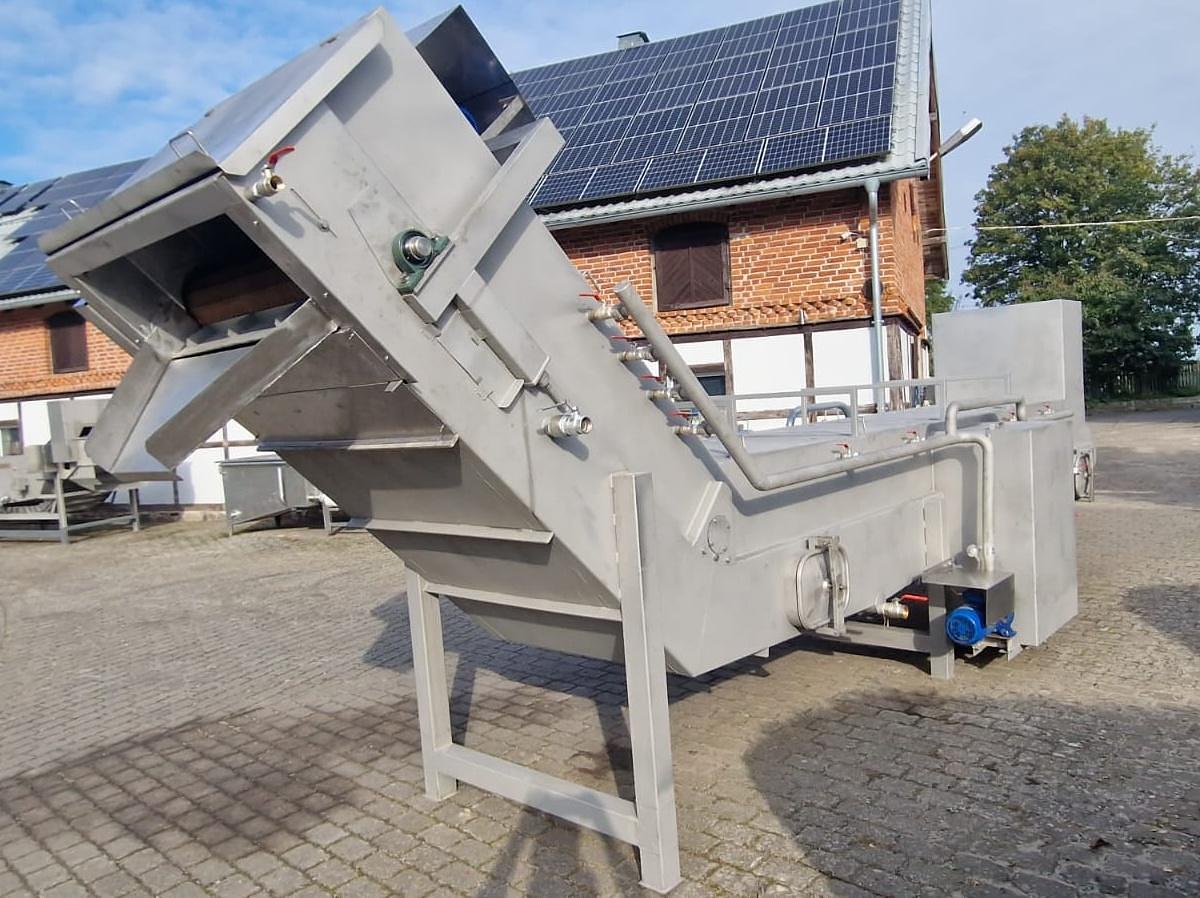

The MEYN conveyor blancher is an industrial device designed for continuous blanching of food products in a water environment. Its belt transport system ensures uniform heat treatment, high process consistency, and stable operation in food processing lines.

The machine is ideal for preparing raw materials for further processing such as freezing, cooling, packaging, or sterilization.

Overall dimensions

• Total length: 7,800 mm

• Total width: 1,770 mm

• Total height: 2,750 mm

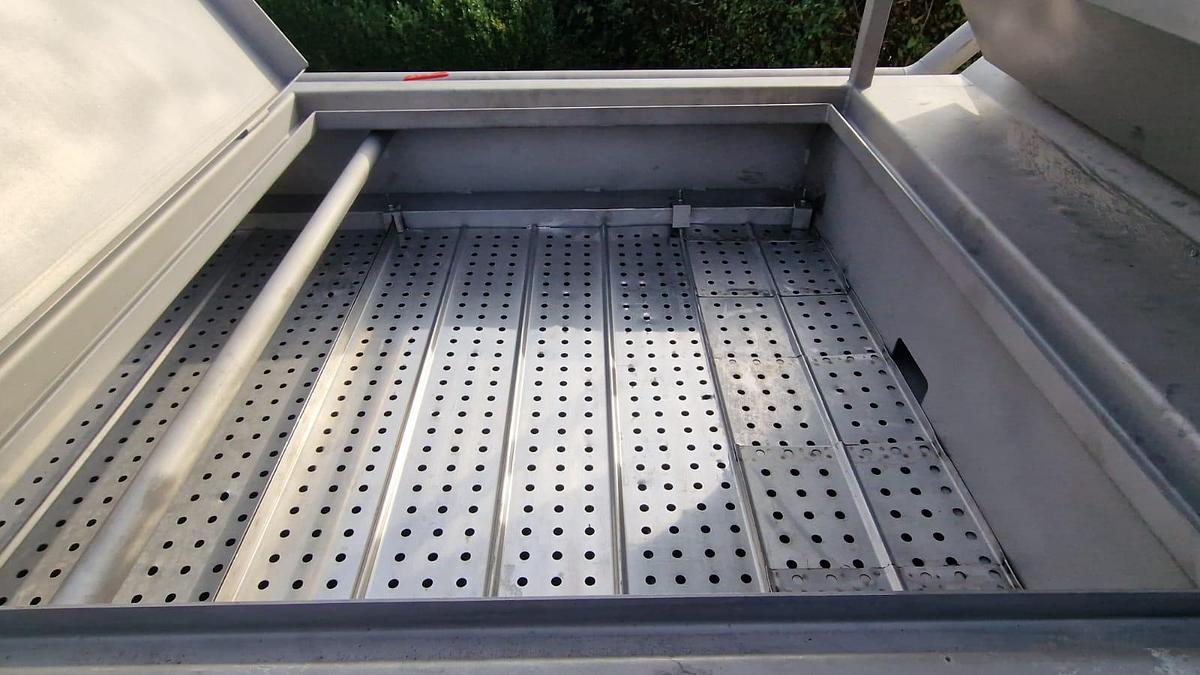

Conveyor belt dimensions

• Belt length: 7,600 mm

• Belt width: 1,100 mm

Technical data

• Steam consumption: up to 1,200 kg/h

• Electricity consumption: 2.5 kW

• Power supply: 60 Hz / 380 V

• Maximum water temperature: up to 96°C

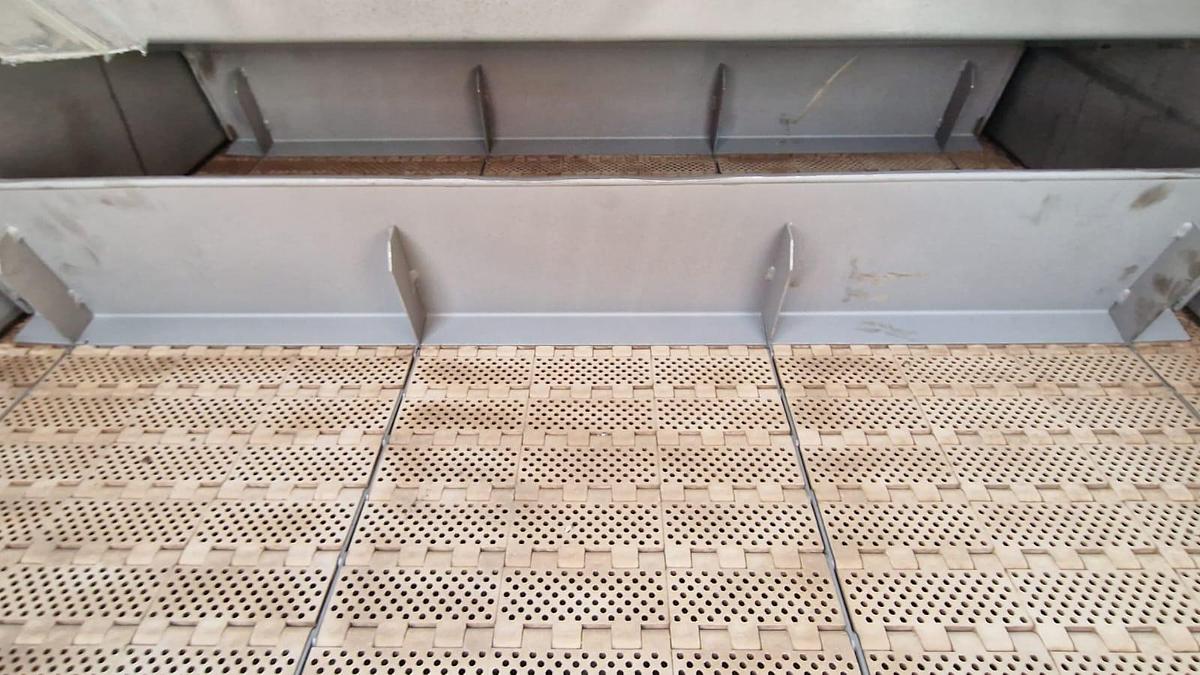

• Pusher height on the belt: 150 mm

• Spacing between pushers: 400 mm

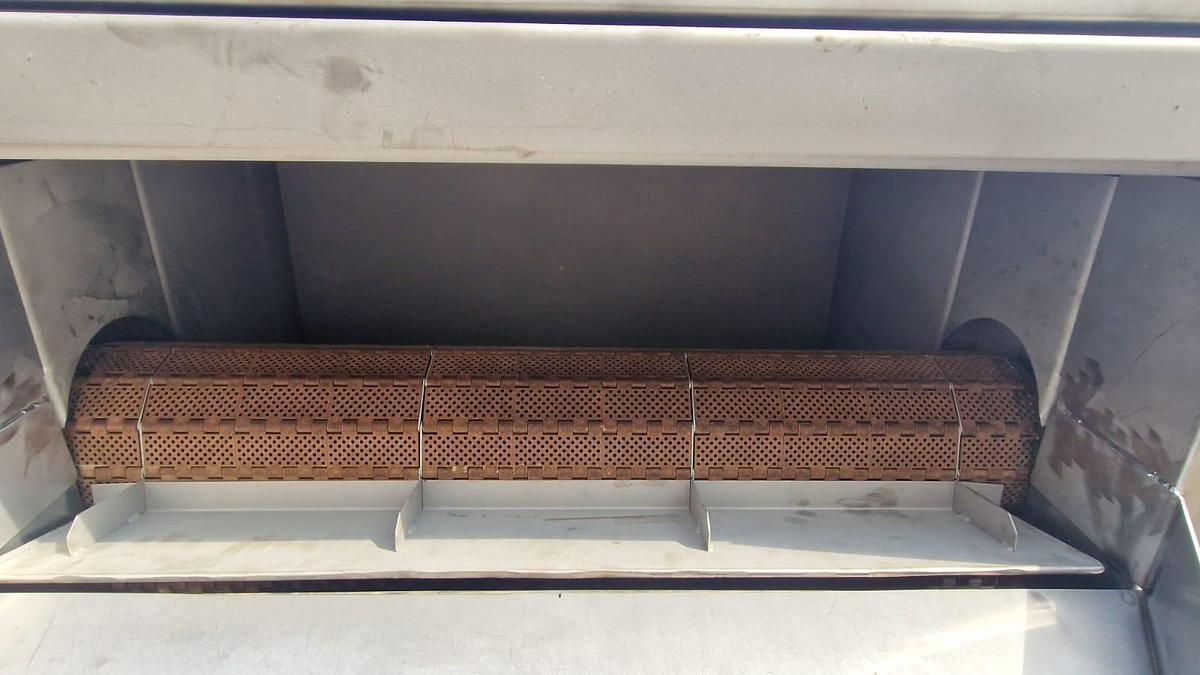

• Belt type: modular belt

• Material: stainless steel

Features and advantages

• Continuous blanching process for high productivity

• Uniform heat treatment due to stable product guidance on the belt

• Precise blanching time adjustment via belt speed control

• Resistant to high temperature and humidity

• High hygiene standards – stainless steel construction

• Easy cleaning and maintenance, suitable for intensive operation

Application

The MEYN conveyor blancher is used in:

• fruit and vegetable processing plants

• frozen food production

• food industry processing lines

• preparation of products for further technological processes
