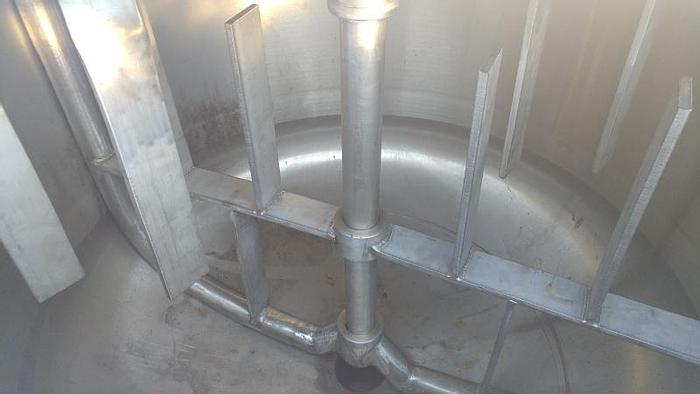

Fat melting boiler 500 l capacity - MKA 31

Fat melting boiler 500 l capacity - MKA 31 It is used in the meat industry to melt fat Dimensions:

- width - 1.720 mm; - height - 2.315 mm; - steam working pressure - 0.6 MPa. Technical data:

- steam working pressure - 0.6 MPa; - steam temperature - 164°C; - steam demand - 70-100 kg / h; - boiler working capacity - 500 dm³; - total boiler capacity - 550 dm³; - pressure space capacity - 150 dm³; - device capacity - 800 kg / 4h; - net weight - 836 kg; - weight during operation - 1.765 kg; - drive power - 0.75 kW; - stirrer rotation - 15 U / min; - materials in contact with the product - stainless steel - thick-walled (8 mm); - heating jacket - steel specially prepared for this type of work boiler; - other elements - carbon steel: - A - steam supply connection - 32 mm; - B - condensate drain - 25 mm; - C - drain connection - 100 mm; - D - connection of the venting cock - 10 mm; - E - condensate drain connection - 10 mm.
