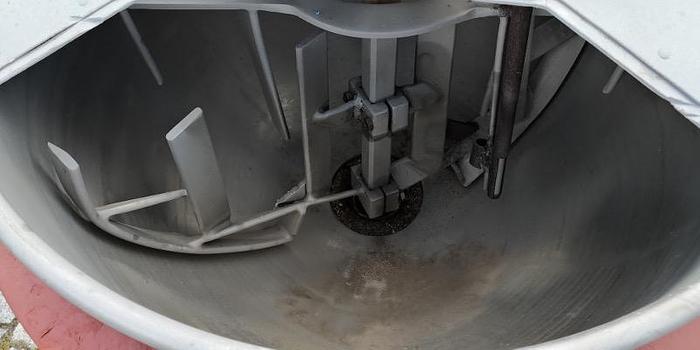

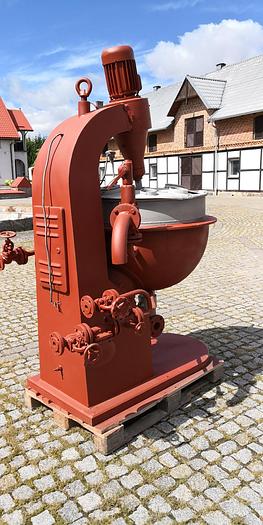

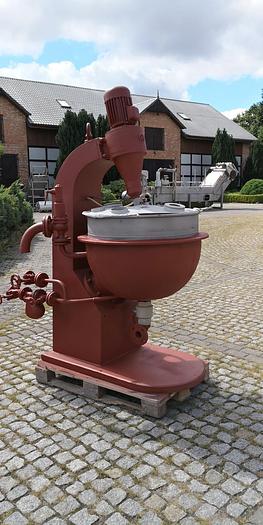

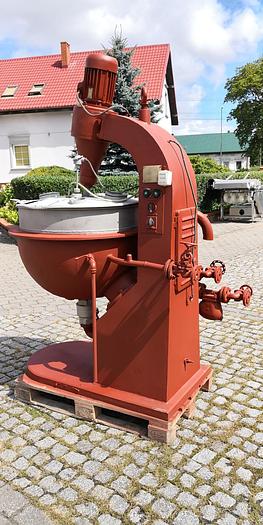

Boiler for cooking fillings -" CKA 22"

Kettle for cooking fillings - "CKA 22" Dimensions: - length - 1,500 mm; - width - 1,140 mm; - height - 2,200 mm. Technical data: - Producer - Spomasz Pleszew, Poland; - Model - CKA 22; - Pressure tank number - 23180; - Serial number - 345; - Built in - 1982; - Total capacity - 220 l; - Working capacity - 150 l; - Capacity of the pressure part - 38 l; - Heat transfer area - 1.03 m²; - Design steam pressure - 10 bar; - Steam consumption - 95 kg / h; - Design temperature - 200°C; - Agitator drive - 1.5 kW / 2.790 U / min; - Rotations of the agitator - 41 rpm; - Diameter of the bottom discharge - Ø 80 mm; - Weight - 715 kg.
