Kettle for heating fillings - "CKA9d"

Boiler for heating fillings - "CKA9d"

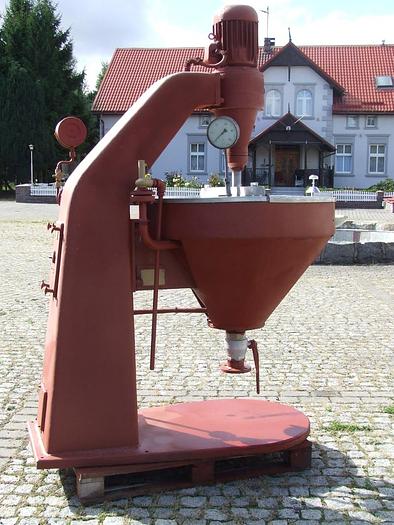

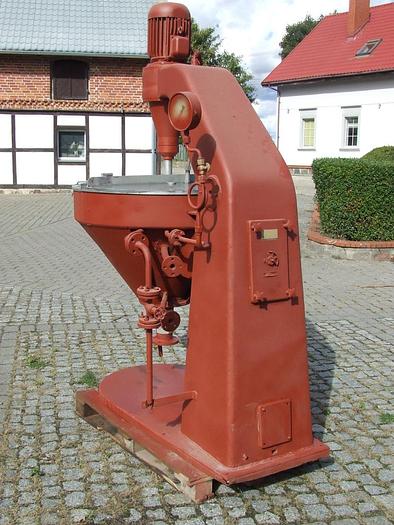

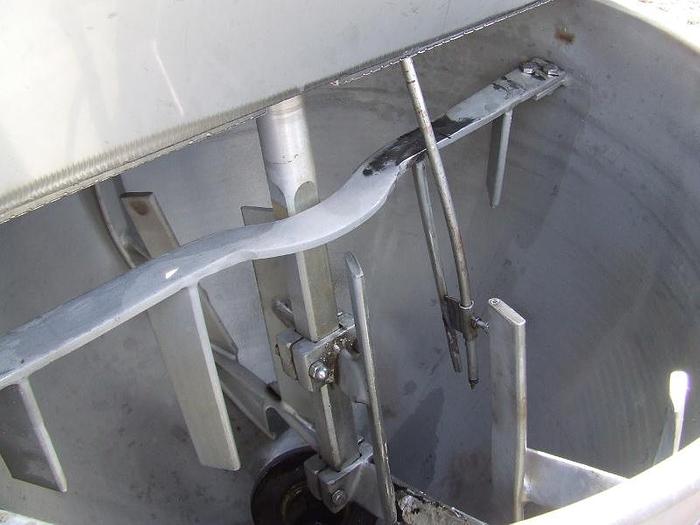

The CKA 9d kettle is designed for heating fillings and food masses in industrial processes. The device is equipped with a steam-heated jacket and a stirrer with adjustable speed, ensuring even heating of the product and maintaining the required process temperature.

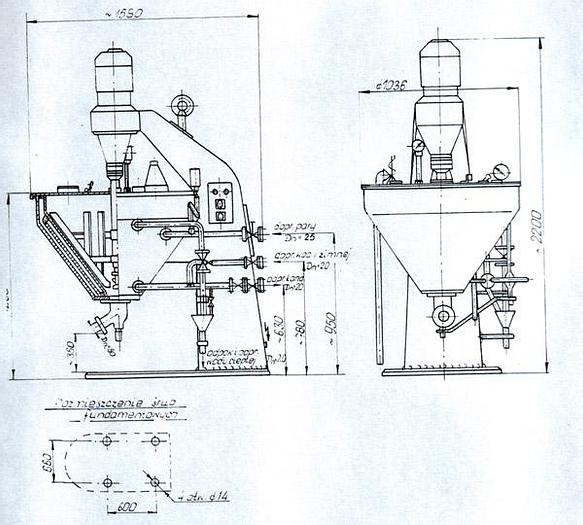

Overall Dimensions

• Length: 1,580 mm

• Width: 1,036 mm

• Height: 2,200 mm

Technical Data

• Operating steam pressure: 0.3 MPa

• Steam temperature: 143 °C

• Process temperature: ~ 80 °C

• Cooling water temperature: ~ 14 °C

• Steam consumption: 75 kg/h

• Water consumption: up to 300 l/h

• Heating surface of jacket: 1.2 m²

• Working capacity of kettle: 140 l

• Total capacity of kettle: 180 l

• Pressure space volume: 44 l

• Device output: 50 kg/h (heating from 20°C to 80°C)

• Installed power of stirrer drive: 1.5 kW

• Stirrer speed: 26 rpm

• Power supply: 380/220 V – 50 Hz

• Net weight: 670 kg

• Operating weight: 840 kg

Applications

• Heating fillings, creams, and food masses in the confectionery and food industry.

• Processes requiring precise temperature control and uniform product mixing.

• Integration with production lines requiring heating from 20°C to 80°C.
