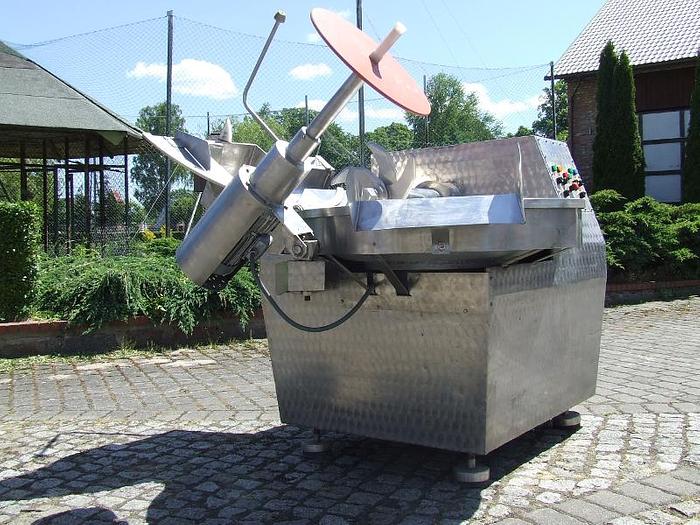

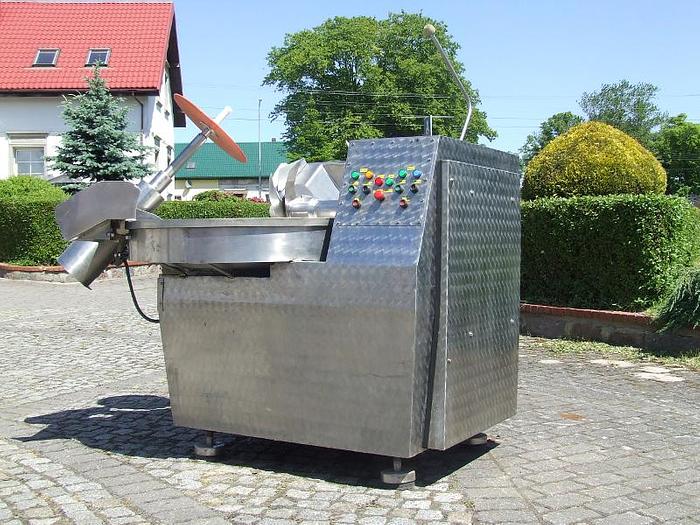

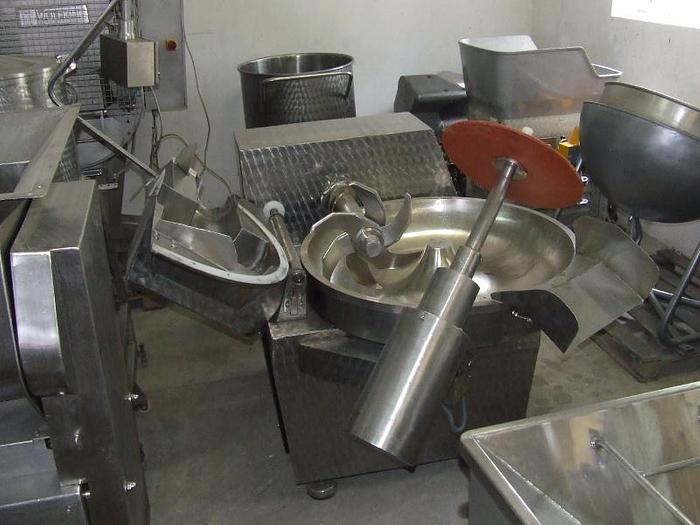

K-120 AN cutter-mixer, capacity 120 l with stuffing ejector, stainless

K-120 AN cutter-mixer, capacity 120 l with stuffing ejector, stainless

The cutter is designed for very fine grinding of meat with simultaneous hydration

and seasoning to the desired level stuffing. The motors for the drive of the knife shaft

and the bowl are two-speed. The stuffing from the cutter's bowl is unloaded using a selector thyroid.

All components in contact with the meat, as well as the outer surfaces of the machine,

are made of materials acid-resistant. Dimensions:

- Length - 2,100 mm; - Width - 1,400 mm; - Height - 1,360 mm. Technical data:

- Bowl capacity - 120 l; - Knife shaft drive motor power - 17/23 kW; - Knife shaft speed - 1,575 / 3,150 U/min; - Bowl drive motor power - 0.55 / 1.1 kW; - Bowl rotation - 12,5 / 25 U/min; - Selector drive motor power - 0,6 kW; - Power supply - 380 / 220V, 50Hz; - Weight - 1,250 kg.
