Drier (powder) ANITEC BallTec.

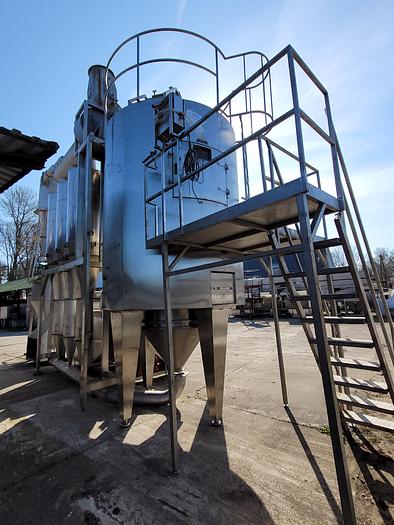

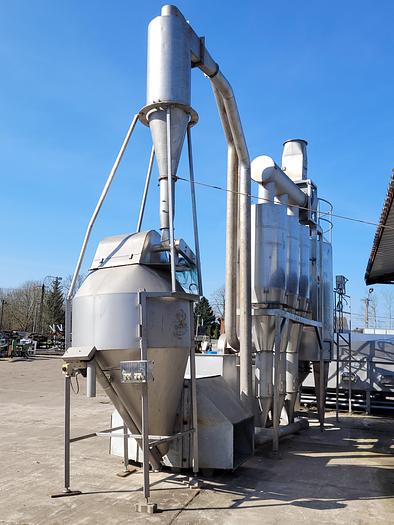

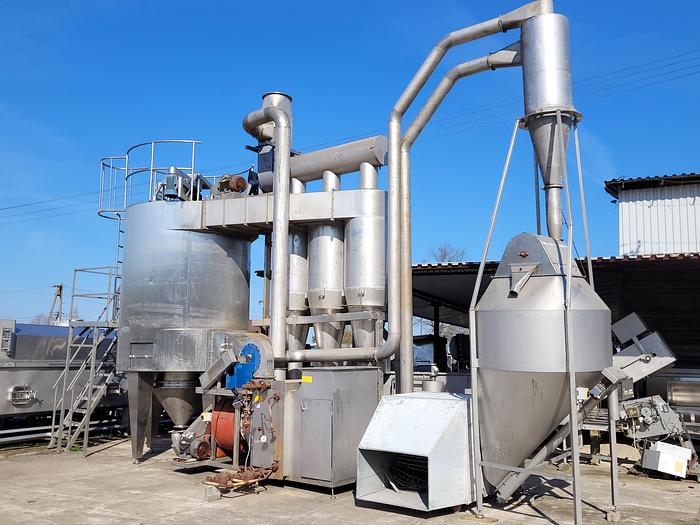

ANITEC BallTec PRL034 Drying Plant (Powder Room) for Blood and Milk Proteins The ANITEC BallTec PRL034 dryer is a modern industrial device for obtaining high-quality protein powder, Designed for food and industrial production. The device ensures stable performance and precise control. temperature and efficient use of energy, enabling the drying of blood or milk proteins while maintaining their nutritional properties. Technical data * Type: PRL034 * Maximum evaporated water capacity: 300 kg/h * Average capacity: 250 kg/h * Max. air temperature from the heater: 125 ºC * Temperature of air entering the dryer: 98 ºC * Air temperature leaving the dryer: 38–45 ºC * Air temperature with powder: 60–64 ºC * Average steam consumption (7 bar): 1.4 kg of steam/kg of evaporated water * Electricity consumption: 0.08–0.1 kW/kg of evaporated water * Power supply: 3×400 V, 30–35 kW * Hot air consumption: 8,000–10,000 m³/h * Drying area: approx. 350 m² * Heating system: steam battery, max steam pressure: 10 bar * Total weight: approx. 8,000 kg Required installation space * Drying room: approx. 60 m², height 6.5 m * Room for powder container: 10 m², height 7 m * Powder specific gravity: 0.6–0.65 kg/l advantages of the ANITEC BallTec dryer * Stable and high water evaporation efficiency * Precise temperature control for optimal powder quality * Efficient use of steam and electricity * Large drying surface for a quick process * Suitable for industrial work with a high standard of hygiene
