Conveyor with drivers, swan neck type

Feeder – frill conveyor with swan neck type carriers

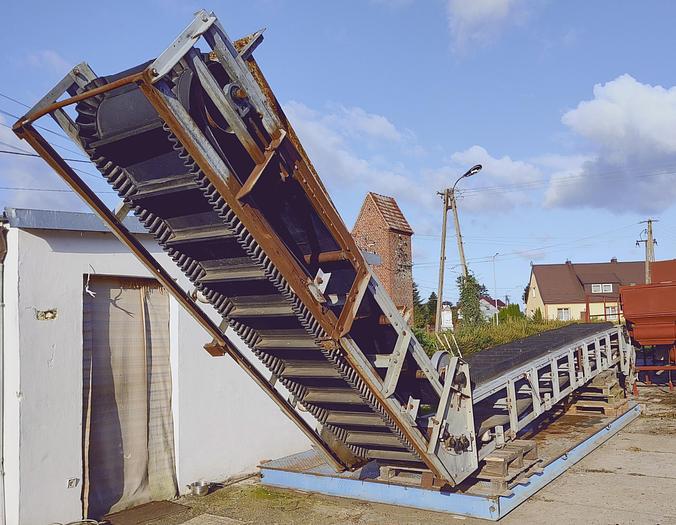

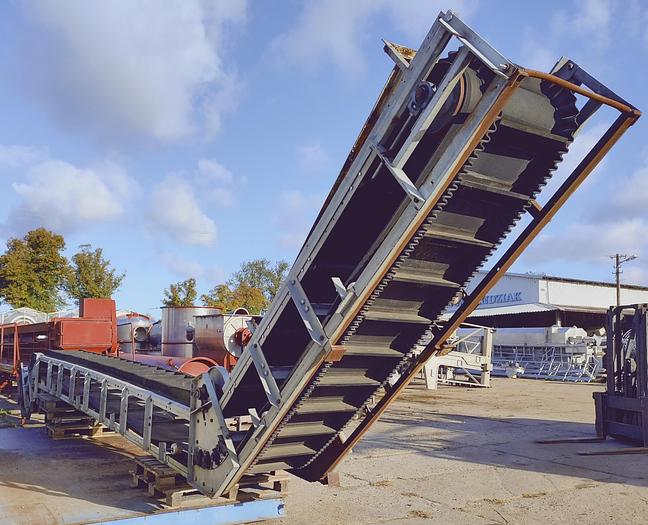

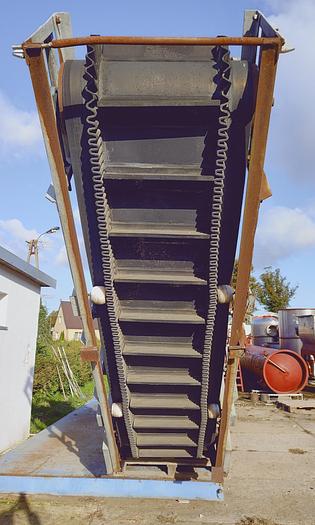

The swan neck conveyor is an efficient and universal transport device designed for transporting various types of loose, pieced or packaged products. Thanks to the construction with a frilled tape with carriers, the feeder enables safe and smooth transport of material at a large angle, maintaining load stability. The device consists of three main sections: the loading part, the rising part and the unloading part, which allows it to be effectively adapted to the existing technological line. The chain drive and motor used gear and speed control ensure reliability, long service life and precise operation control. Technical data Dimensions: * Total length: 11,100 mm * Total width: 1,100 mm Transport sections: * Loading part length: 3,100 mm * Length of the rising part: 7.100 mm * Length of unloading part: 1,000 mm Tape parameters: * Tape width: 820 mm * Working width: 500 mm * Distance between cleats: 280 mm * Driver height: 100 mm Drive: * Geared motor with speed control * Belt drive: chain Advantages of the device * Enables transport at a large angle thanks to the belt with cleats * Speed regulation – matching the pace of the production line * Solid construction with a total length of over 11 m * Safe handling of delicate and loose products * Chain drive – durable and reliable * Easy integration with packaging and processing lines
