Worm pump (cavity) with "Bornemann" hopper

Screw pump (cavity) with hopper "Bornemann" The Bornemann ER1024 screw pump is an efficient device designed for transporting high-viscosity, dense media. liquids, masses, pastes, and products containing solid particles. Produced by the renowned manufacturer Bornemann (Obernkirchen, Germany) in 2001, is characterized by a solid construction and high operational reliability. Thanks to the feeding hopper and the pre-feed screw, the pump is perfect for the food industry, chemical, cosmetic, feed and pharmaceutical industries - wherever continuous, even and delicate work in terms of product structure. Technical data Dimensions:

• Total length: 2,400 mm
• Total width: 1,600 mm
• Total height: 1,230 mm

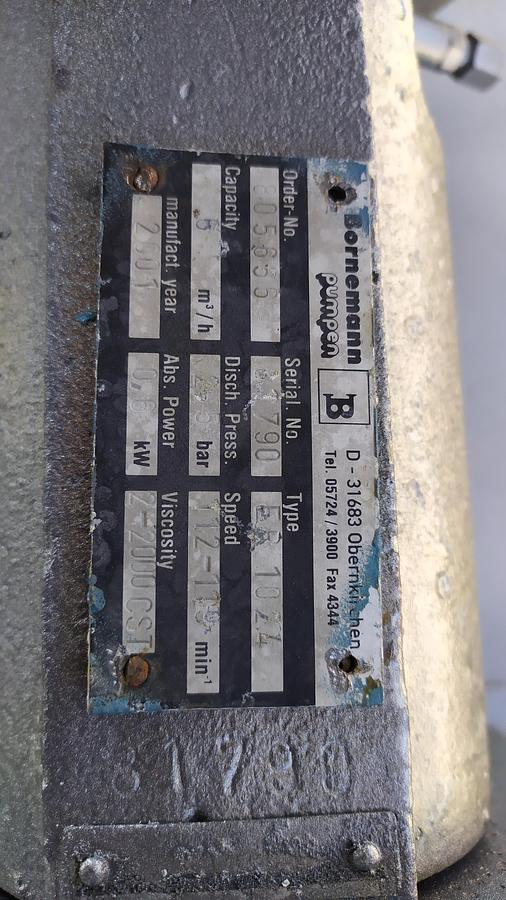

Technical parameters:

• Manufacturer: Bornemann, Obernkirchen, Germany
• Type: ER1024
• Year of production: 2001
• Capacity: 6 m3/h

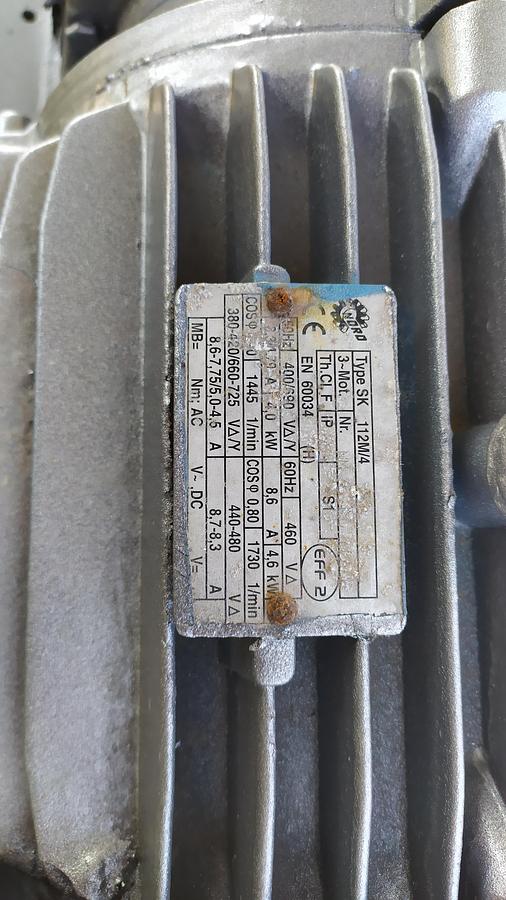

Engine:

• Manufacturer: NORD
• Type: 112M/4
• Power: 4 kW
• Revolutions: 1,445 rpm

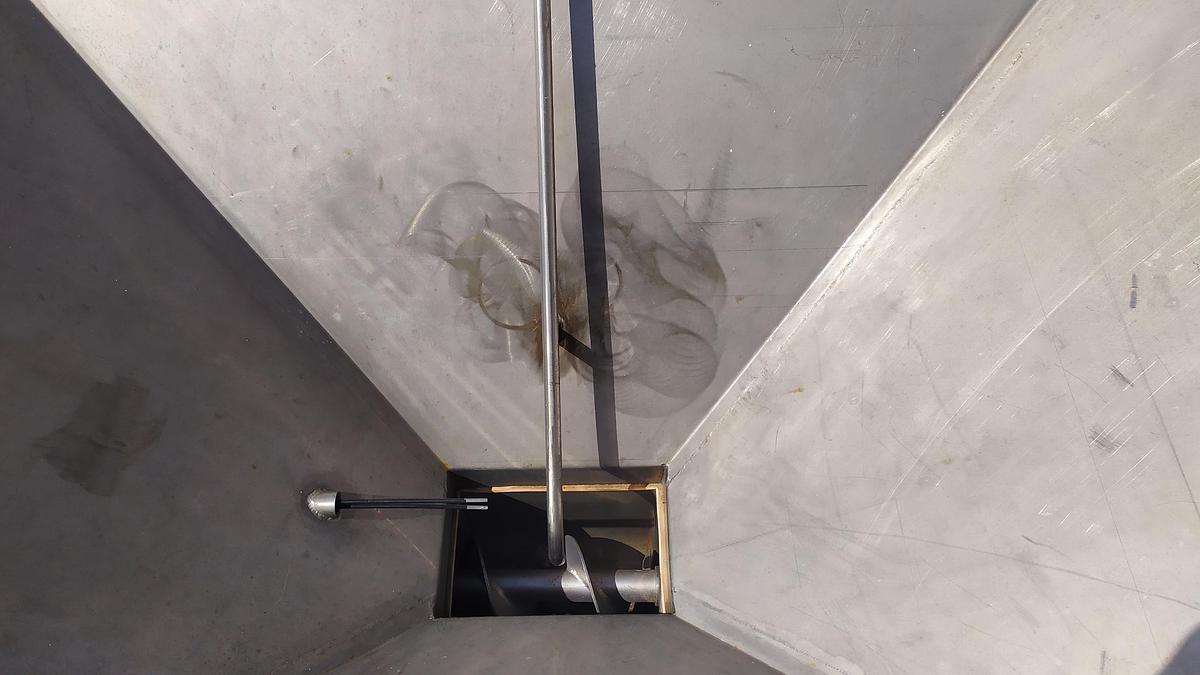

Feed hopper:

• External dimensions: 1,800 × 1,500 mm
• Internal dimensions: 1,730 × 1,430 mm

Pre-feeder:

• Screw diameter: 150 mm

Construction execution:

• Main shaft bearing housing - cast iron
• Stator body - carbon steel
• Stator – plastic
• Feed hopper, rotor, pre-feed screw, outlet flange and base - stainless steel

Advantages of the device:

• Suitable for thick and viscous media
• High quality workmanship – German precision by Bornemann
• Durable steel and cast iron construction
• Easy to clean and maintain
• NORD drive – reliable and energy-saving
• Ideal for use in the food, chemical and cosmetics industries
