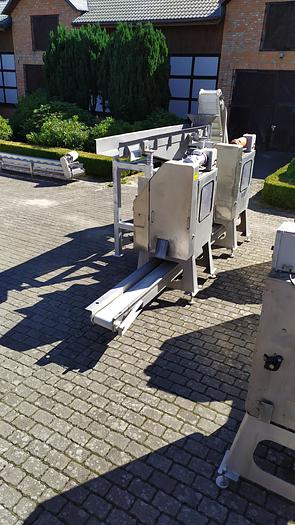

Cherry and sweet cherry pitting line - capacity 3 t / h

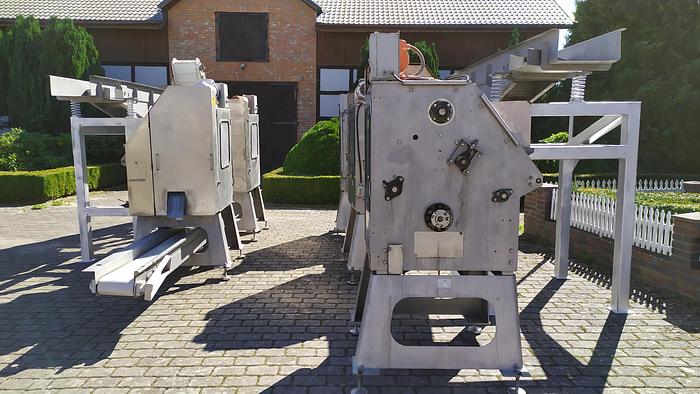

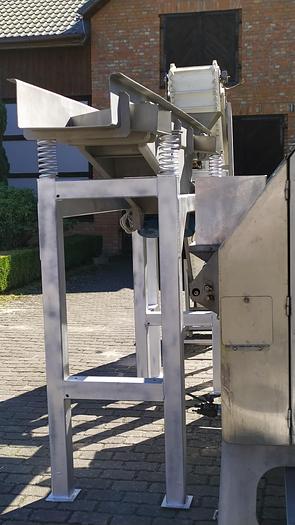

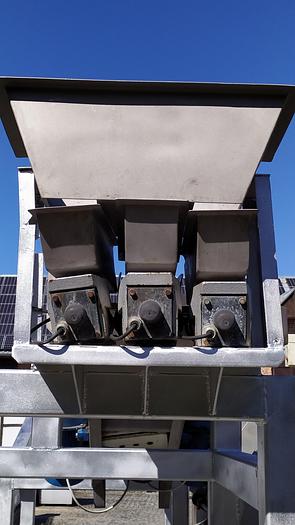

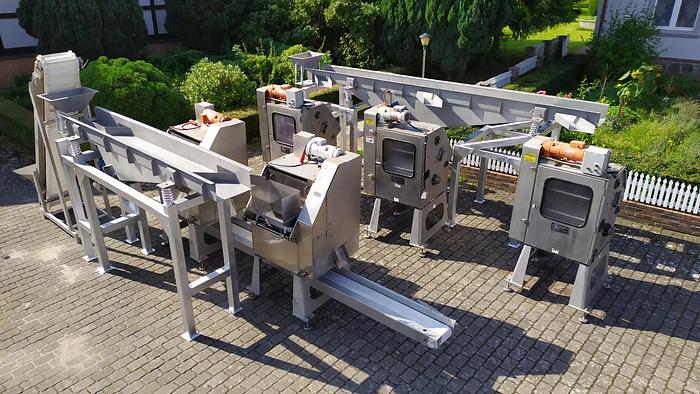

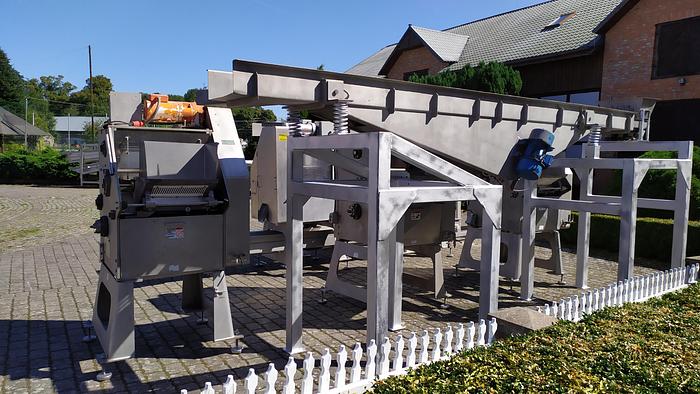

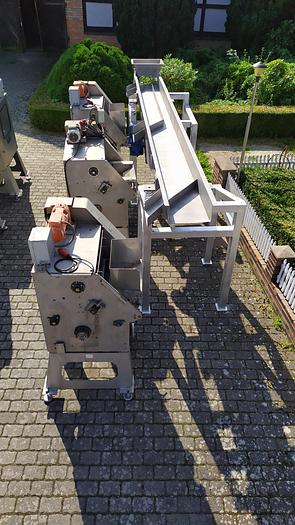

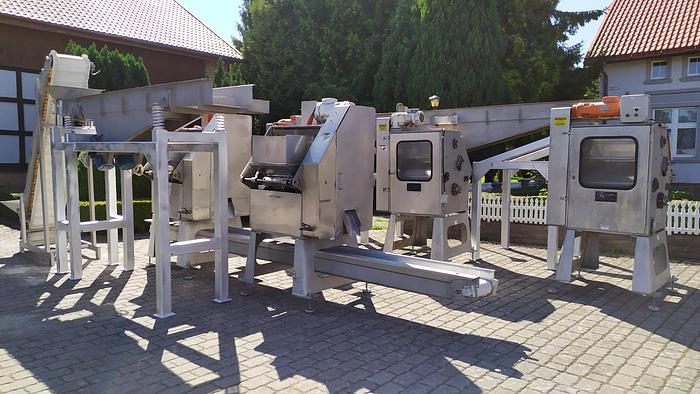

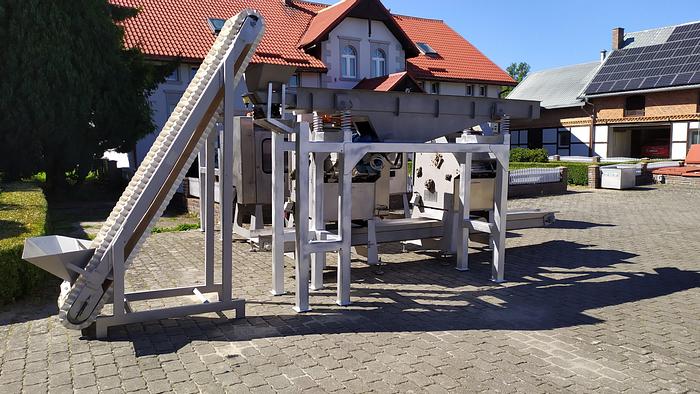

Cherry and sweet cherry pitting line - capacity 3 t/h The line consists of: 1. Five drills from the company "Dunkley": - Three stoners for smaller fruit; - Two stoners for larger fruits. 2. Two threshold conveyors to be fed to vibrating feeders; 3. One common three-track vibratory feeder for three drills; 4. One common two-track vibrating conveyor for two drill machines; 5. One conveyor for collecting pitted fruit common to three stoners; 6. One conveyor for collecting pitted fruit common to two stoneworkers; 7. One common pit collecting conveyor for five drills. Overall dimensions of the entire line: - Width: 5,200 mm; - Length: 7,600 mm; - Height: 3,000 mm. Technical descriptions of the line components: 1. Dunkley cherry pitting machine, USA Dimensions: - Length: 1,010 mm; - Width: 1,160 mm; - Height: 2,000 mm. Technical data: - Number of bars: 96 bars/min .; - Engine: power 1 HP; - Diameter of pitting nests: 27 mm or 24 mm (cherries, sour cherries); - The number of needles on the plate: 38 or 53 pcs; - Capacity: up to 900 kg/h or 680 kg/h, respectively; - Product: cherries, cherries; - Standard diameter of pitting needles: 9.53 mm; - The approximate diameter of sweet cherries: 25.4 mm or 20.7 mm. 2. Sill conveyor (transporter) with a side frill "SIAS MPA" - stainless Dimensions: - Width: 800 mm; - Depth: 1,900 mm; - Height: 2,760 mm. Technical data: - Modular belt with carriers; - Belt length: 3,100 mm; - Belt width: 450 mm; - Distance between the captive blades: 150 mm; - Drive height: 50 mm; - Height for charging (hopper): 440 mm; - Drive - electric, drum motor; - Polyurethane tape; - Frame and structure: stainless steel; - Weight: 185 kg. 3. Three-path vibratory feeder on two bases and four springs Dimensions: - Length: 5,250 mm; - Base width: 1,170 mm; - Height from the ground: 2,150 mm. Technical data: - Gutter width: 400 mm; - Trough wall height: 200 mm; - Three separate paths for simultaneous feeding of raw material to three stoners; - Two vibrators; - Three dispensers for uniform feeding of the raw material to three feeder paths. 4. Two-track vibratory feeder on one base and on four springs Dimensions: - Length: 3,600 mm; - Base width: 750 mm; - Height from the ground: 2,150 mm. Technical data: - Gutter width: 400 mm; - Trough wall height: 200 mm; - Two dividing paths for even distribution of the raw material to two stoners; - Two vibrators; - Two dispensers for even feeding the raw material to two feeder paths. 5. Conveyor for collecting pitted fruits, common for three stoners Dimensions: - Length: 6,500 mm; - Width: 490 mm; - Height: 520 mm. Technical data: - Tape width: 250 mm; - Belt length: 6,480 mm; - Trough width: 280 mm; - Trough wall height: 100 mm; - Frame construction - stainless steel; - Polyurethane tape. 6. Conveyor for collecting pitted fruits, common for two stoners Dimensions: - Length: 5,040 mm; - Width: 490 mm; - Height: 520 mm. Technical data: - Belt width: 250 mm; - Belt length: 5,020 mm; - Trough width: 280 mm; - Trough wall height: 100 mm; - Frame construction: stainless steel; - Polyurethane tape. 7. Pits receiving conveyor, common to five drills Dimensions: - Length: 6,500 mm; - Width: 460 mm; - Height: 500 mm. Technical data: - Belt width: 400 mm; - Belt length: 6,480 mm; - Trough width: 300 mm; - Frame construction: stainless steel; - Polyurethane tape.
